Commercial Lighting Layout Guide

A bad lighting plan usually shows up after installation. The back aisle feels dim, the front counter has glare, the warehouse racks cast hard shadows, and someone realizes the emergency path is not as clear as it should be. A solid commercial lighting layout guide helps prevent those problems before fixtures are ordered, mounted, and wired.

For contractors, facility managers, and property owners, layout is not just about putting enough light in a room. It is about matching fixture type, spacing, mounting height, beam distribution, controls, and emergency requirements to the way the space is actually used. The best layouts reduce rework, improve visibility, support code compliance, and make ongoing maintenance easier.

What a commercial lighting layout guide should solve

A useful layout starts with the job itself. An office, stockroom, parking lot, stairwell, and warehouse may all sit on the same property, but they need very different lighting behavior. Uniformity matters more in open office areas. Vertical visibility matters more in aisles and shelving zones. Weather resistance matters outdoors. Emergency operation matters anywhere occupants need a safe path during power loss.

That is why fixture count alone is a poor starting point. Two spaces with the same square footage can need completely different layouts depending on ceiling height, reflectance, task detail, occupancy pattern, and whether the project is new construction or a retrofit. Good planning accounts for all of those variables up front.

Start with the application, not the fixture

The easiest mistake in commercial lighting is choosing a fixture family too early. A flat panel may be ideal for a finished office ceiling, but not for a damp utility area. A high bay may provide excellent output in a warehouse, but be excessive in a small workshop with lower mounting heights. A vapor tight fixture may be the right answer in a washdown or dusty environment where a standard wrap light will not hold up.

Start by defining the space in practical terms. Ask what work happens there, how long people occupy it, whether forklifts or vehicles move through it, whether merchandise or stored materials create shadows, and whether emergency battery backup is required in the fixture or through a separate strategy. Once the application is clear, fixture selection becomes much more accurate.

Light levels: enough, but not excessive

Commercial buyers often focus on maximum brightness because underlighting creates complaints fast. The trade-off is that too much light can increase glare, waste energy, and create uncomfortable contrast between adjacent areas. In a layout, target light levels should fit the task.

Open offices and classrooms usually need balanced, comfortable illumination with good uniformity. Warehouses often need higher output at floor level and along vertical rack faces. Retail needs enough punch to make products readable without flattening the space. Parking structures and exterior areas need consistent visibility for safety without overlighting the perimeter.

This is where foot-candle planning matters. Exact targets depend on the application and local code expectations, but the principle is straightforward: use the lowest light level that still supports safe, efficient work and circulation. That approach saves energy and often improves visual comfort.

Fixture spacing is where layouts succeed or fail

Spacing affects more than brightness. It determines uniformity, shadowing, glare, and the number of fixtures you will need to install and maintain. In many projects, poor spacing creates dead zones that buyers try to fix later by adding extra fixtures, which raises labor and power costs.

A practical rule is to let mounting height guide spacing. High-mounted fixtures can usually be spaced farther apart, but distribution pattern becomes critical. A narrow beam can punch light downward in tall spaces, while a wide distribution helps create smoother coverage in lower ceilings or open-plan areas. The wrong optic or spacing pattern can leave bright pools under each fixture and darker areas between them.

In offices, rows should align with the room geometry and key task areas. In warehouses, rows often need to follow aisles so light lands where people and equipment actually move. In parking lots and site perimeters, pole spacing must account for fixture distribution, pole height, property lines, and security expectations. Symmetry looks clean on paper, but real performance depends on where light lands, not just where fixtures sit.

Commercial lighting layout guide for common spaces

Different environments reward different layout strategies. A one-size-fits-all plan usually creates problems.

Offices and classrooms

Use fixtures that provide broad, comfortable distribution with controlled glare. Flat panels, slim architectural fixtures, and commercial downlights are common choices depending on ceiling type and appearance goals. Keep spacing consistent, but pay attention to conference tables, reception desks, and workstation orientation. If screens are used heavily, glare control matters as much as raw lumen output.

Warehouses and industrial spaces

High bays are usually the right starting point for taller ceilings, but layout should follow storage and workflow. Aisle-based spacing often performs better than a simple grid because it improves visibility where picking, scanning, and movement happen. In dusty or damp environments, vapor tight fixtures may be better in support zones, utility corridors, or service rooms.

Retail and mixed-use commercial spaces

Retail layouts often need a layered approach. General lighting provides base visibility, while accent or directional lighting can support displays and checkout zones. If the store is being remerchandised frequently, flexible spacing and switchable color temperature can be useful. Overly uniform retail lighting can make the space feel flat, while overly dramatic lighting can create uncomfortable contrast.

Parking garages, canopies, and site exteriors

Canopy lights, wall packs, and area lights need careful distribution planning to reduce dark pockets and improve perceived safety. Outdoor layouts also need to respect mounting height, ingress protection, and cutoff behavior. More light is not always better outdoors. The goal is clear visibility, safe navigation, and controlled spill.

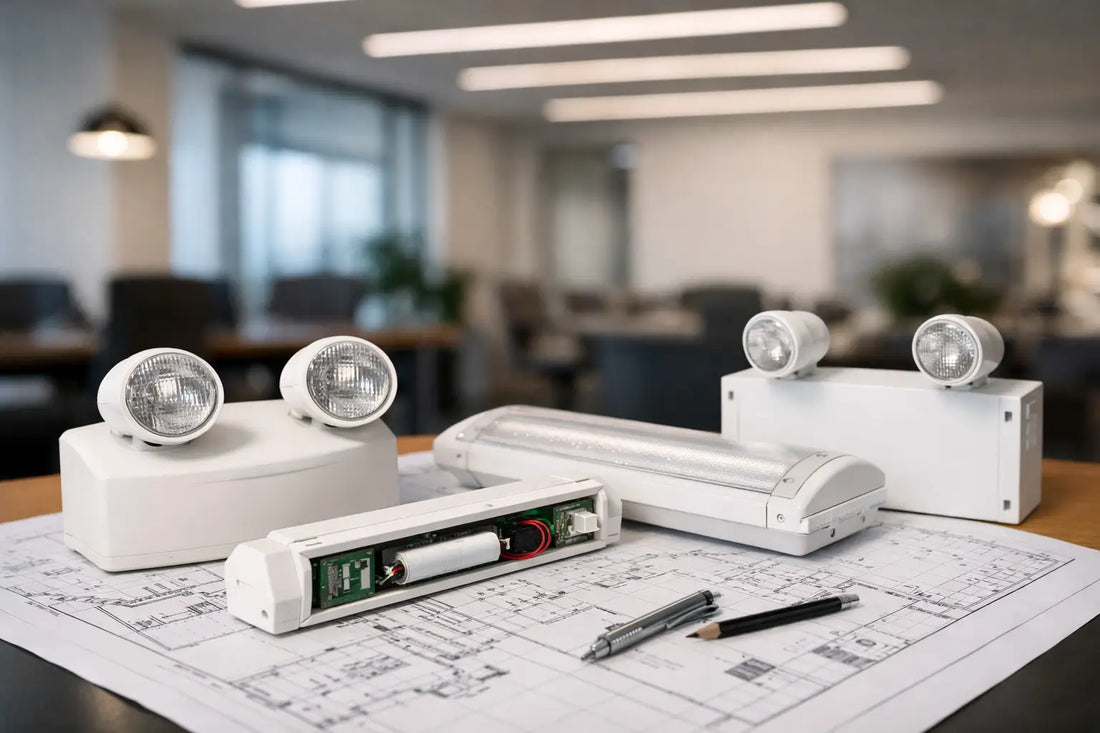

Don’t treat emergency lighting as an afterthought

This is one of the biggest layout errors in commercial projects. Teams finish the general lighting plan, then try to bolt on emergency coverage later. That can work, but it often leads to inconsistent fixture appearance, awkward placement, or missed coverage in exit routes and critical areas.

A better approach is to account for emergency operation during the initial layout phase. Fixtures with integrated or compatible 90+ minute emergency battery backup can simplify the plan while supporting code-compliant operation. That is especially useful in offices, corridors, utility rooms, parking structures, and mixed-use commercial environments where clean installation and reliable backup are both priorities.

It depends on the building and local code whether every fixture type should carry backup capability, but the layout should clearly identify egress paths, exit discharge areas, stairwells, and other spaces where emergency illumination is required. If the project needs emergency drivers, test switches, or compatible controls, those details should be part of the fixture schedule early, not added after ordering.

Controls belong in the layout stage too

Lighting controls can improve efficiency fast, but only if they fit the space. Motion sensors work well in stockrooms, restrooms, corridors, and lower-traffic utility areas. Daylight-responsive controls can make sense near windows or under skylights. Tunable or selectable fixtures can simplify SKU decisions during retrofit work and help crews adapt on site.

The trade-off is complexity. Overcontrolled spaces can frustrate occupants if sensors time out too quickly or switch zones do not match actual use patterns. A smart layout groups fixtures by how the space operates, not just by electrical convenience. If one side of a warehouse runs continuously and another sees intermittent use, those areas should not necessarily share the same control strategy.

Retrofit realities that affect layout

New construction gives you more freedom. Retrofits do not. Existing junction box locations, ceiling grid dimensions, conduit runs, and mounting conditions often shape the final layout as much as photometric goals do. That does not mean accepting a poor plan. It means balancing ideal spacing with what can be installed efficiently and safely.

For retrofit projects, look closely at fixture footprint, mounting compatibility, driver access, and whether emergency backup components can fit the installation condition. Easy-to-install LED fixtures save labor, but only if they match the field conditions. This is where application-specific product selection matters more than broad catalog browsing.

Common layout mistakes to avoid

Most lighting problems come from a short list of avoidable errors. Buyers either undercount fixtures, oversize them, ignore mounting height, or forget how shelving, partitions, and equipment affect shadows. Others focus only on average light level and miss uniformity, which is why a space can technically test bright enough but still feel poorly lit.

Another common mistake is mixing fixture types without a clear purpose. A layout that combines panels, downlights, wraps, and wall packs can work well, but only when each fixture is assigned to a specific role. Random mixing usually creates inconsistent color, uneven output, and harder maintenance.

When to ask for layout support

If the project includes tall ceilings, complex floor plans, emergency requirements, exterior coverage, or multiple fixture types, layout assistance is worth it. The cost of getting it wrong is usually higher than the cost of planning it properly. That is especially true when labor, lift access, tenant scheduling, or inspection timing is tight.

AHA Lighting serves buyers who need practical, code-conscious fixture options for real commercial environments, including LED products with emergency-ready configurations and installation-friendly features. When the project has moving parts, it makes sense to Speak to a Lighting Expert before the order is finalized.

The right layout should make the space easier to work in on day one and easier to maintain for years after that.
