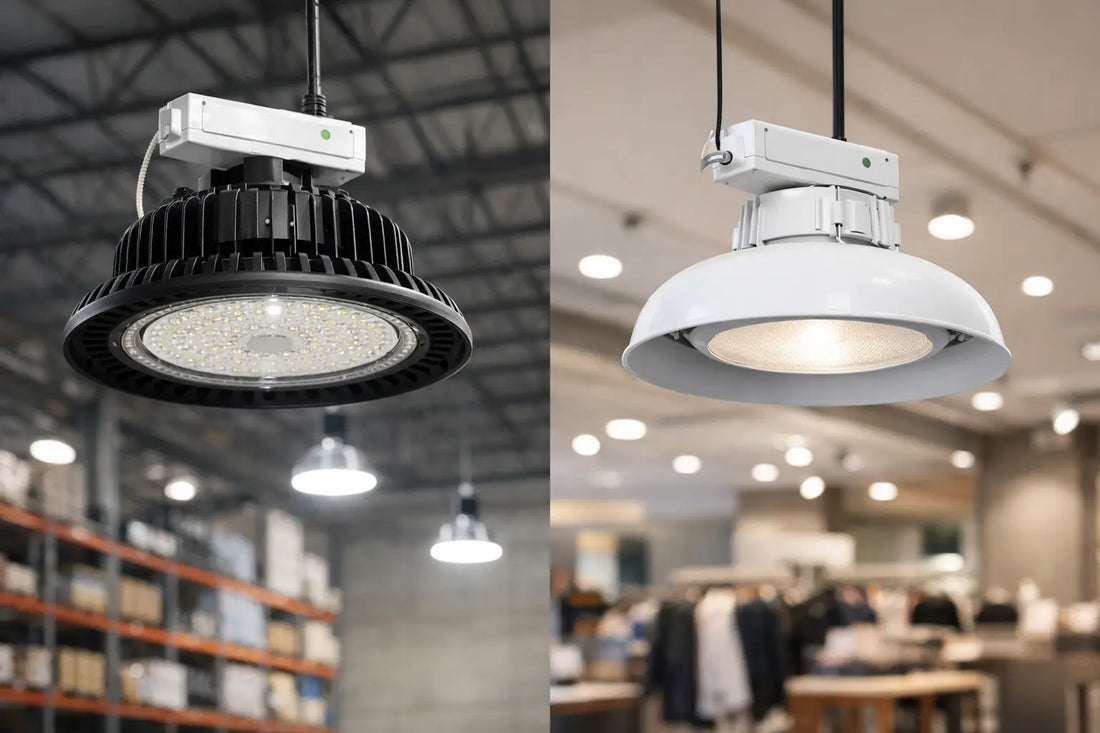

High Bays vs Low Bays: Choose the Right LED

A warehouse can have bright-looking fixtures and still have unsafe aisles, dark rack faces, and uneven work areas. The difference often comes down to selecting the wrong fixture class for the mounting height. When comparing high bays vs low bays, the practical question is not which fixture produces more lumens. It is which distribution, output, and mounting arrangement will put usable light on the floor, equipment, shelves, and work surfaces.

For contractors and facility teams, that decision affects more than appearance. It influences installation labor, operating cost, maintenance access, code requirements, emergency preparedness, and whether people can safely perform detailed tasks throughout the space.

High Bays vs Low Bays: The Core Difference

High bay and low bay fixtures are both designed for large commercial and industrial interiors, but they are engineered for different mounting heights and light-throw requirements.

Low bay fixtures typically serve ceilings from about 12 to 20 feet. They are common in retail floors, garages, workshops, light manufacturing areas, gymnasiums, utility rooms, and smaller warehouse zones. At these heights, the fixture needs to spread light broadly without creating excessive glare directly below it.

High bay fixtures are generally used at mounting heights of 20 feet and above. Warehouses, distribution centers, manufacturing floors, aircraft hangars, and tall storage areas are typical applications. A high bay must deliver enough intensity to maintain target foot-candle levels at the working plane far below the fixture. It also needs the right optic to avoid wasting light above rack tops or outside the intended aisle.

The 20-foot guideline is useful, but it is not absolute. A 22-foot ceiling with open floor space may work well with a wide-distribution fixture, while a 18-foot warehouse with tall pallet racks may need a more focused high-bay-style layout. Ceiling height starts the conversation. The work performed below, the room geometry, and the required light level determine the final specification.

Start With Mounting Height and the Work Plane

Measure from the fixture mounting point to the work plane, not simply from the ceiling to the floor. In a warehouse, the work plane may be the floor for pedestrian and forklift traffic. In an assembly area, it may be a bench 30 inches above the floor. In a storage area, vertical illumination on rack labels may matter as much as horizontal light on the aisle.

A low bay installed too high usually produces weak, patchy illumination. Increasing wattage alone may not correct the problem because the fixture’s beam pattern may be too broad to carry light efficiently to the floor.

A high bay installed too low can create the opposite problem. The area directly beneath the fixture may be overly bright, while workers experience glare from looking up toward an intense source. This is especially common when a powerful round UFO high bay is placed over lower ceilings without adjusting output, mounting spacing, or lens selection.

For many LED fixtures, selectable wattage and selectable color temperature add useful flexibility. They allow the installer to fine-tune output for the actual space rather than treating every room with the same fixture setting. That flexibility does not replace a lighting layout, but it can reduce risk when field conditions vary from the original plan.

Light Distribution Matters as Much as Lumen Output

Lumen ratings describe total light leaving a fixture. They do not show where that light lands. Two fixtures with similar lumen output can perform very differently because of their optics.

A wide distribution is often appropriate for low-bay applications with lower ceilings and open work areas. It spreads light across a broader footprint and supports uniformity between fixtures. This can be a good fit for workshops, service bays, retail back rooms, and open production areas.

High-bay applications often need a more concentrated distribution. In open warehouses, this helps light travel farther to the floor. In racked storage, aisle optics can direct illumination along the length of an aisle rather than spilling light onto the top of shelving. The result can be better visibility with fewer wasted lumens.

Uniformity should be reviewed alongside average foot-candle levels. A space with a high average reading can still be poorly lit if there are dark areas between fixtures or at the ends of aisles. For forklift routes, loading zones, packing stations, and inspection work, consistent light is often more valuable than isolated bright spots.

Match the Fixture to the Application

High bays are not reserved only for massive warehouses, and low bays are not simply smaller high bays. The application should guide the choice.

A 30-foot distribution center with wide aisles and high storage racks is a clear high-bay project. High-output fixtures, appropriate aisle or narrow beam distributions, and a photometric layout are typically required. Mounting method also matters. Pendant mounting may position fixtures below obstructions, while hook or chain mounting can simplify service in some facilities.

A 16-foot auto service area is commonly a low-bay application. The goal is broad, comfortable illumination across vehicle bays and tool areas, often with a higher emphasis on glare control. If there are lifts, exposed structure, or localized task areas, fixture placement may need adjustment to prevent shadows on the work.

A 20-foot mixed-use warehouse is where the decision requires more care. Open shipping and receiving areas may favor a wide high bay at a reduced wattage setting. Low-ceiling office-adjacent storage areas may require low bays, flat panels, or strip fixtures instead. Using one fixture type throughout a mixed-use building can simplify purchasing, but it can also compromise light quality and energy use.

For garages and utility spaces, mounting height may support low bays, wrap lights, or vapor-tight fixtures rather than a traditional high bay. Environmental conditions should also be considered. Damp locations, dust, temperature swings, and washdown exposure can require a fixture with the appropriate IP rating, housing construction, and listing for the environment.

Evaluate Energy, Controls, and Maintenance Together

LED high bays and low bays can substantially reduce energy use compared with legacy metal halide or fluorescent systems, but the best savings come from correct sizing. An oversized fixture running at full output consumes more power than necessary and may reduce visual comfort. An undersized fixture can lead to added fixtures later, more installation labor, and a disappointing result.

Occupancy sensors, daylight harvesting controls, and dimming drivers can improve operating efficiency when matched to the space. Sensors are particularly useful in intermittent-use warehouse aisles, storage rooms, and back-of-house areas. In active production spaces, however, aggressive sensor settings can be disruptive. Set time delays and dimming levels around real operating patterns, not just theoretical energy savings.

Maintenance access deserves attention before fixtures are ordered. High bays are often installed where lifts are needed for servicing, so long rated life and dependable drivers carry real value. Low-bay fixtures may be easier to reach, but frequent relamping or driver replacement still creates labor costs and operational disruption.

For retrofit projects, verify voltage, mounting hardware, branch circuit capacity, control compatibility, and any required surge protection. A fixture that is easy to install on paper can become a field problem if the existing junction box, cord, hook, or conduit arrangement was not reviewed first.

Do Not Treat Emergency Lighting as an Afterthought

General lighting and emergency lighting serve different purposes. A bright high-bay layout does not automatically provide the required emergency egress illumination during a power loss. Facilities may need separate exit signs, emergency heads, battery-backed fixtures, or compatible emergency backup drivers depending on the occupancy, layout, local code requirements, and authority having jurisdiction.

In selected applications, emergency-capable LED fixtures can support a more coordinated approach to normal and emergency operation. A 90-minute battery backup option may be especially valuable where maintaining a safe path of travel is difficult with standalone emergency units alone. Still, battery backup output is typically lower than normal-mode output, so it must be evaluated for emergency light levels rather than assumed to match full operation.

Confirm the fixture listing, battery backup configuration, testing access, and required code coverage before installation. Emergency equipment must be installed and maintained according to applicable codes, including routine functional testing. This is one area where a low upfront price can become expensive if the selected product does not meet the project requirement.

A Better Way to Specify Your Layout

Before choosing between high bays and low bays, document the ceiling height, mounting height, room dimensions, obstructions, rack layout, task types, surface colors, voltage, and existing control system. Then establish the target foot-candle level for the actual activity. Storage, material handling, detailed assembly, and inspection work do not require the same illumination.

A photometric plan is particularly valuable for tall ceilings, narrow aisles, high-value inventory areas, and projects where fixture count must be justified. It identifies likely hot spots, dark areas, and spacing issues before labor is committed. For a straightforward garage or workshop, a careful fixture spacing plan may be enough. For a large warehouse, guessing is rarely the lowest-cost approach.

The right fixture is the one that delivers reliable light where people work, supports safe operations when power conditions change, and does not create unnecessary installation or energy costs. If the mounting height or layout sits near the line between fixture types, speak to a lighting expert before ordering. A short specification review can prevent a long-term lighting problem.
