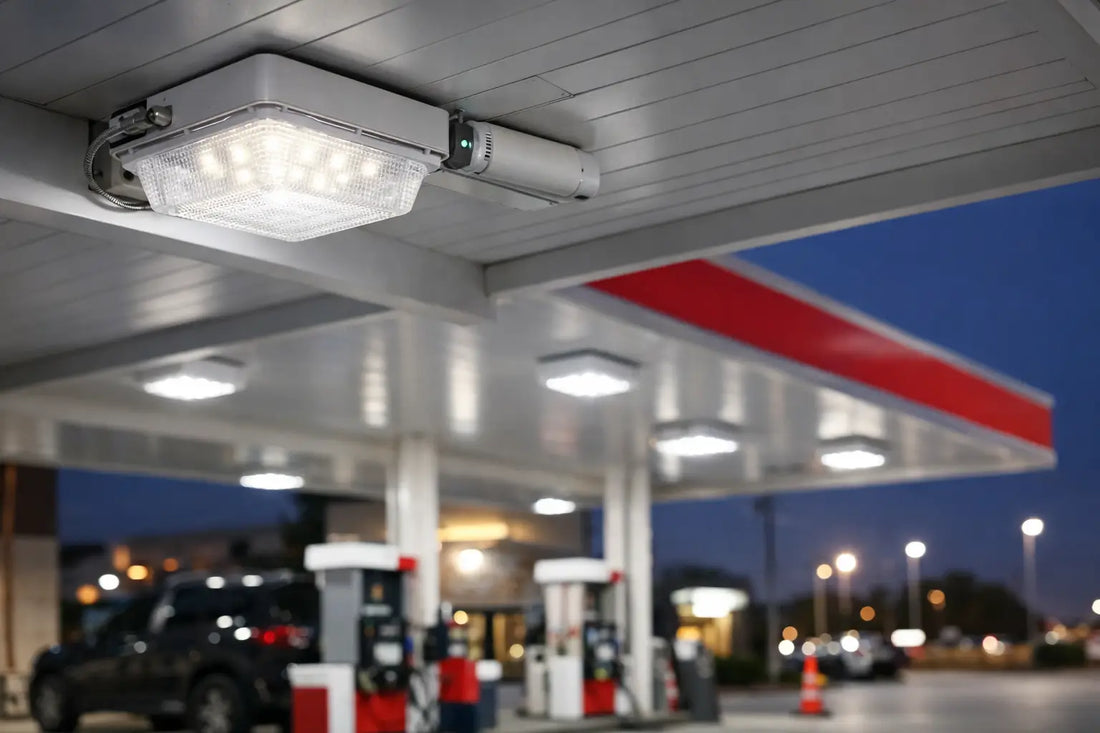

How to Retrofit Canopy Lighting for Safer Sites

A failed canopy fixture does more than create a dark spot. At a fuel island, loading entrance, parking garage, drive-through, or covered walkway, it can reduce visibility, raise security concerns, and leave customers or employees navigating hazards after hours. Knowing how to retrofit canopy lighting lets facility teams replace aging HID, fluorescent, or damaged LED fixtures with a more efficient, dependable system built for the actual conditions on site.

A successful retrofit is not simply a matter of matching fixture size. The right canopy light must provide usable illumination at the pavement or work surface, fit the existing mounting condition, withstand the environment, and meet applicable electrical and emergency-lighting requirements. Planning those details before ordering fixtures avoids the costly cycle of rework, uneven light levels, and premature failures.

Start With a Site and Fixture Assessment

Before selecting a replacement, document what is installed now. Identify the existing fixture type, mounting method, voltage, circuiting, and control method. Take photos of the canopy ceiling, junction box, conduit entry, and mounting holes. Measure the fixture footprint, especially when replacing large metal halide or high-pressure sodium canopy lights with a compact LED unit.

Check the electrical label on the existing fixture or verify the branch circuit voltage at the junction box. Many commercial LED canopy fixtures accept 120-277V, which works well for common building circuits. Other applications may require 347-480V equipment. Never assume a fixture is compatible based on appearance alone.

The condition of the canopy matters as much as the electrical supply. Look for corrosion, cracked junction boxes, water intrusion, loose mounting surfaces, or damaged conduit seals. An LED retrofit can reduce maintenance, but it will not correct an unsafe or deteriorated mounting location. Repair those conditions first.

It also helps to map where light is needed, not just where old fixtures happen to be located. A canopy over a vehicle fueling area has different lighting demands than a covered apartment entry or a warehouse loading dock. Note dark edges, shadowed payment terminals, pedestrian paths, vehicle lanes, and high-activity zones. This assessment guides fixture output, distribution, spacing, and control decisions.

Choose the Right LED Canopy Fixture

LED canopy lighting is usually the best retrofit path because it reduces energy consumption, turns on instantly, and can deliver a long operating life. But wattage alone is not a purchasing specification. Compare lumen output, optical distribution, mounting, color temperature, rated environment, and available controls.

For most commercial canopies, a neutral white color temperature between 4000K and 5000K supports clear visibility. A 4000K fixture often provides a balanced appearance for entrances and mixed-use properties. A 5000K fixture can be useful where crisp visibility and security are the priority, such as service areas, garages, and loading zones. The correct choice depends on the surrounding lighting and the property's visual requirements.

Look for a fixture rated for the location. Outdoor and semi-outdoor canopies need appropriate wet-location protection, while enclosed garages and industrial environments may benefit from fixtures with higher ingress protection and impact resistance. In areas exposed to dust, moisture, salt air, vibration, or vehicle exhaust, a standard indoor fixture is not an acceptable substitute.

Mounting is another common retrofit issue. Surface-mount canopy lights attach directly to a junction box or canopy surface and are a practical option for many replacements. Pendant or conduit-mounted fixtures may be needed when the existing wiring method or ceiling design requires them. Confirm that the fixture's mounting hardware covers the prior opening or that an approved mounting plate is available.

Select Output Based on Layout, Not a One-for-One Wattage Swap

Replacing a 250W metal halide fixture with an LED canopy fixture is not an automatic one-for-one decision. Metal halide systems lose output over time, while LED fixtures deliver light more consistently across their rated life. The old fixture may also have been oversized, poorly spaced, or using a distribution that created glare and shadows.

Use the fixture's delivered lumens and photometric information to evaluate coverage. For a small covered entry, lower output may be enough. A fuel canopy, busy loading zone, or tall garage canopy may need higher output and wider spacing coverage. Pay attention to mounting height. A fixture that performs well at 10 feet may not provide adequate uniformity at 16 feet.

If the site has varying ceiling heights or usage zones, consider selectable wattage and selectable color temperature fixtures. These options give contractors and facility managers flexibility during installation, but settings should be chosen deliberately and documented. Selecting the highest wattage by default can increase glare, waste energy, and create inconsistent lighting across the property.

Plan Controls and Emergency Operation Early

Canopy lighting often operates for long hours, so controls can produce meaningful energy savings. Photocells are useful where fixtures should turn on at dusk and off at dawn. Motion or occupancy sensors can reduce run time in lower-traffic areas such as covered walkways, garages, and loading areas. For continuously active sites, a dimming schedule may be more appropriate than full shutoff.

Controls must match the application. A motion sensor with a short timeout may be frustrating or unsafe at a building entrance. A photocell installed too close to the fixture's own light output can cycle improperly. Confirm sensor coverage, mounting height, delay settings, and whether controls are integrated or externally wired.

Emergency lighting deserves separate consideration. General canopy lights are not automatically emergency fixtures. Where the canopy serves as part of an egress route, local code and the authority having jurisdiction may require emergency illumination. Fixtures with an integrated 90-minute emergency battery backup, or compatible emergency drivers where appropriate, can keep critical pathways illuminated during a utility outage.

Emergency-capable equipment is especially valuable at commercial entrances, parking structures, covered exits, and facilities that operate after dark. The design still needs to meet code-required illumination levels and testing provisions. Consult the project electrical plans, applicable building and fire codes, and the local authority having jurisdiction rather than treating battery backup as a universal replacement for a dedicated emergency-lighting system.

How to Retrofit Canopy Lighting Safely

A licensed electrician should perform commercial canopy retrofit work. The installation typically begins with lockout/tagout and verification that the circuit is de-energized. Outdoor canopy circuits can involve multiple feeds, switched legs, photocells, and emergency circuits, so testing is essential before any conductors are handled.

Remove the old fixture carefully, supporting its weight before disconnecting wiring. Inspect the junction box and conductors for heat damage, brittle insulation, corrosion, or inadequate grounding. Replace compromised components and make sure the box is properly secured for the weight of the new fixture.

Install the LED canopy fixture according to the manufacturer's instructions. Use listed mounting hardware, approved connectors, and gaskets or seals required for wet locations. Connect line, neutral, and equipment ground correctly. If the fixture includes dimming leads, sensor wiring, or emergency backup conductors, follow the wiring diagram exactly. Cap unused leads individually with approved connectors rather than leaving them exposed inside the enclosure.

Once mounted, restore power and verify operation in every intended mode. Test the photocell, motion sensor, dimming response, and any networked controls. For emergency-capable fixtures, test the battery backup according to the manufacturer's procedure and record the installation date. Emergency systems need recurring functional testing and maintenance, not just a one-time commissioning check.

Avoid the Retrofit Mistakes That Cause Callbacks

The most common problem is selecting a fixture based only on watts or price. A lower-cost unit that does not fit the mounting surface, lacks the right environmental rating, or delivers poor distribution can cost more once labor and customer complaints are considered.

Another mistake is ignoring glare. Excessively bright fixtures mounted at low canopy heights can create uncomfortable contrast for drivers and pedestrians. Proper distribution, fixture placement, and output selection provide better visibility than simply increasing lumens.

Do not mix color temperatures randomly across a site. A canopy with 5000K fixtures beside 3000K wall packs can look inconsistent and make maintenance replacements harder to manage. Standardize specifications where practical, then label the fixture type, wattage setting, color setting, and control configuration for future service.

Finally, do not overlook documentation. Keep fixture cut sheets, wiring diagrams, warranty information, emergency test records, and a simple location map. This gives maintenance teams a reliable reference when a driver, sensor, battery, or complete fixture eventually needs replacement.

Build a Retrofit Around Long-Term Reliability

A canopy retrofit should improve more than the electric bill. It should make entrances, service areas, and vehicle zones easier to see, easier to maintain, and better prepared for outages. The best result comes from matching the LED fixture, mounting approach, controls, and emergency strategy to the actual site conditions.

For projects with uncertain voltage, unusual mounting, emergency requirements, or uneven coverage, speaking to a lighting expert before installation can prevent expensive field changes. A properly specified canopy system stays out of the way when it is working well - providing clear, dependable light whenever the property needs it.
