How to Retrofit Parking Garage Lighting Safely

A parking garage retrofit is not simply a lamp-for-lamp replacement. Poor visibility at ramps, stair doors, payment areas, and pedestrian paths creates real safety and liability concerns. Knowing how to retrofit parking garage lighting starts with a site-specific plan that improves light quality, reduces operating costs, and maintains required emergency illumination when normal power fails.

For most garages, LED fixtures deliver the strongest long-term result. They reduce wattage, minimize maintenance trips, and provide better directional light than aging HID, fluorescent, or metal halide systems. The right retrofit also accounts for mounting conditions, controls, corrosion exposure, electrical capacity, and the local authority having jurisdiction.

Start With a Garage Lighting Assessment

Before selecting fixtures, document what is installed now and how the space is actually used. Walk every level during operating hours and after dark. Note areas where drivers struggle to see turns, pedestrians cross traffic lanes, cameras lose image detail, or fixtures create harsh glare on wet concrete.

Record fixture type, wattage, mounting height, voltage, spacing, condition, and the number of failed lamps or ballasts. If the garage has metal halide fixtures, include their actual operating wattage, not just the lamp rating. A 250W metal halide system can draw substantially more power once ballast losses are considered.

This assessment should also identify the garage's different lighting zones. An open-air top deck does not have the same requirements as a covered lower level. Entrances need visual adaptation lighting so drivers can safely transition between daylight and darker interior areas. Ramps need consistent illumination and low glare. Stairwells, elevator lobbies, exit paths, and electrical rooms may require separate emergency lighting considerations.

A professional photometric layout is worth requesting for larger projects, garages with uneven existing lighting, or sites where security and compliance are priorities. It shows predicted foot-candle levels and uniformity across the pavement and walking areas before equipment is ordered. That helps prevent a common retrofit mistake: installing brighter fixtures but leaving dark zones between them.

Choose LED Fixtures for the Application

The best LED replacement depends on the existing mounting method and environmental conditions. LED canopy lights are often a practical choice for covered parking decks, lower ceilings, entrances, and drive lanes. Their broad, downward distribution can provide even illumination from a compact fixture.

For ceiling-mounted linear systems, LED vapor tight fixtures, wrap lights, or strip lights may be appropriate. Vapor tight construction is especially useful in garages exposed to humidity, wind-driven rain, road salt, exhaust residue, or washdown conditions. Open decks and perimeter areas may call for wall packs or area lights, depending on pole locations, mounting heights, and distribution needs.

Do not select fixtures by wattage alone. Compare delivered lumens, optical distribution, efficacy, color temperature, voltage range, IP rating, and expected operating environment. A fixture with more lumens is not automatically better if its distribution pushes light into drivers' eyes or leaves the pavement unevenly lit.

For most parking applications, 4000K to 5000K LED lighting provides clear, neutral-to-cool visibility. Many facilities prefer 4000K in enclosed levels because it is comfortable without appearing overly stark. A 5000K setting can be effective in open decks, exterior approaches, and security-focused areas where higher perceived brightness is useful. Selectable color temperature fixtures provide flexibility when the final preference has not been confirmed.

Build Emergency Lighting Into the Retrofit

Normal lighting improves day-to-day operations. Emergency lighting protects occupants during a power outage, fire alarm event, or electrical failure. These systems should be planned together, not treated as separate purchases after the main fixture order is complete.

Parking garages often contain long travel paths, level changes, enclosed areas, and multiple exits. When utility power drops, occupants still need enough illumination to identify exit access routes, avoid vehicle lanes, and move through stairwells safely. Local code requirements vary, so verify the applicable building code, fire code, electrical code, and AHJ requirements for the property.

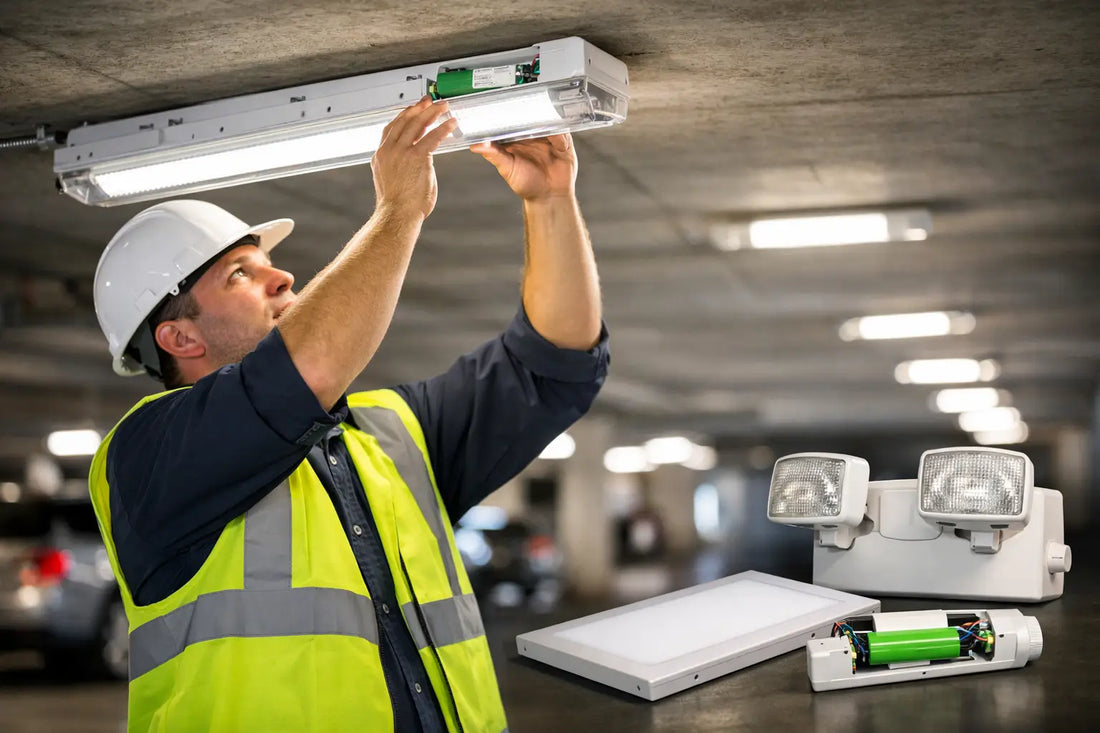

A practical approach is to use UL-certified LED fixtures with integrated emergency battery backup where appropriate. A 90-minute emergency backup option can maintain illumination from selected fixtures without installing a separate emergency unit in every location. This can simplify the finished appearance and reduce the number of devices an electrician must mount and maintain.

Emergency-capable fixtures are not a substitute for a code review. Exit signs, emergency egress lighting, generator systems, inverter systems, and battery-backed fixtures each serve specific functions. The required emergency light level, test method, circuiting approach, and placement depend on the facility layout and local enforcement requirements.

During planning, identify which fixtures must remain on during a power loss. Common priority locations include stair doors, elevator lobbies, exit discharge points, changes in direction, pedestrian routes, and accessible paths. Keep emergency fixtures on an unswitched source as required by the equipment instructions and the electrical design. Label circuits clearly so future maintenance does not compromise emergency operation.

Plan Controls Without Creating Dark Areas

Lighting controls can significantly improve the payback of an LED retrofit, particularly in garages that operate 24 hours a day. Occupancy sensors, daylight sensors, and programmable dimming allow fixtures to reduce output when areas are vacant while maintaining a safe baseline level.

The key is setting controls for the environment rather than applying an aggressive energy-saving preset. A sensor that turns lights off too quickly in a stairwell, ramp, or pedestrian corridor creates a safety problem. In most garages, bi-level dimming is more appropriate than full shutoff. Fixtures can remain at a lower standby output, then rise to full output when motion is detected.

Daylight harvesting can work well near open sides, top decks, and entrances. It is less useful in enclosed lower levels where daylight does not consistently reach the pavement. Specify compatible sensors and drivers from the start. Retrofitting incompatible controls later can add labor, delay commissioning, and limit fixture performance.

Address Electrical and Installation Details Early

An LED retrofit can reduce electrical load, but it still requires a careful field review. Confirm available voltage, branch circuit capacity, conduit condition, junction box locations, and mounting surfaces. Many commercial LED fixtures accept 120-277V input, but installers should never assume every existing circuit falls within that range.

Check whether old fixtures are mounted to junction boxes, pendant stems, conduit, concrete, or specialty brackets. The replacement fixture must have a secure, code-compliant mounting method. In garages with exposed concrete decks, surface-mounted canopy fixtures may reduce installation complexity. In other locations, an adapter plate or accessory bracket may be needed to cover existing openings and provide a clean finish.

Garages are demanding environments. Specify fixtures with suitable wet-location or damp-location ratings for the installation area, along with durable housings and corrosion-resistant hardware where moisture and de-icing salt are common. For open decks, exterior-rated equipment is essential. Review ambient temperature ratings as well, particularly in hot climates or enclosed areas with limited ventilation.

Coordinate installation in phases if the garage cannot close. A contractor can work level by level or zone by zone, keeping traffic routes and pedestrian access open. Schedule work during lower-occupancy periods where possible, and communicate temporary closures, overhead work areas, and alternate walking routes in advance.

Verify Performance After Installation

Commissioning is where a lighting retrofit becomes a dependable operating system rather than a completed electrical project. Once fixtures are installed, inspect every level after dark. Look for shadowing at parking stalls, glare near ramps, poor light at stair entrances, and inconsistent output between fixtures.

Test motion sensors, dimming settings, photocells, and time delays under actual conditions. Then test emergency operation according to the equipment instructions and the facility's maintenance procedures. Battery-backed fixtures should be documented by location, test date, and replacement schedule. Emergency batteries are consumable components, and a fixture that looks normal during daily operation may not perform as required during an outage.

Keep fixture cut sheets, wiring diagrams, control settings, warranty information, and an updated lighting plan in the facility maintenance file. This documentation makes future repairs faster and helps property teams maintain consistent specifications as fixtures are added or replaced.

When a Simple Fixture Swap Is Enough

A straightforward fixture-for-fixture swap can work when the existing layout already provides acceptable coverage, mounting locations are sound, and the garage has separate compliant emergency lighting. This is common in smaller, uniformly lit garages where the main objective is replacing failing HID or fluorescent equipment with lower-wattage LEDs.

A more complete redesign is the better choice when there are recurring dark spots, frequent security complaints, changing traffic patterns, inadequate emergency coverage, or a major difference between existing and replacement fixture distributions. The upfront planning cost is typically small compared with correcting a poorly performing installation after equipment has been mounted.

AHA Lighting can help contractors and facility teams match canopy lights, vapor tight fixtures, wall packs, controls, and emergency backup options to the conditions of a specific garage. The goal is not to install the most fixtures. It is to install the right equipment in the right locations, with performance that stays dependable long after the retrofit crew leaves.
