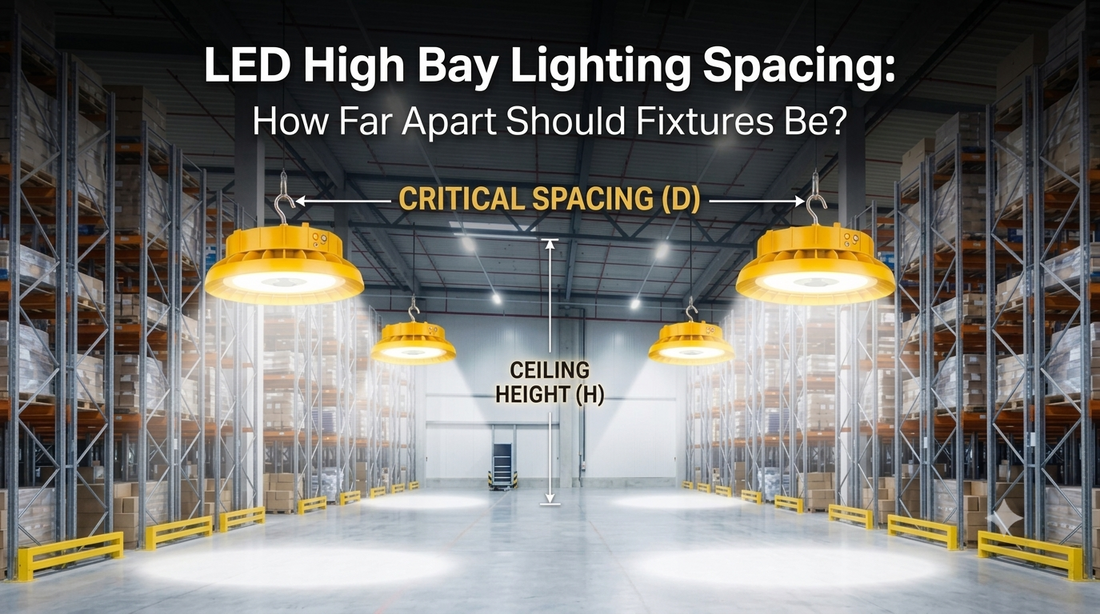

LED High Bay Lighting Spacing: How Far Apart Should Fixtures Be?
Proper LED high bay lighting spacing is essential for creating safe, consistent illumination in warehouses, manufacturing facilities, distribution centers, and other large commercial spaces. Fixtures installed too far apart can create dark spots and uneven lighting, while fixtures placed too close together may increase installation and energy costs without providing meaningful benefits.
So, how far apart should LED high bay lights be? There is no single spacing distance that works for every facility. The ideal spacing depends on ceiling height, fixture lumen output, beam angle, mounting location, floor layout, and the type of work performed in the space.
What Determines LED High Bay Lighting Spacing?
The first step in planning high bay lighting is understanding the conditions of the space. Several factors determine how far apart fixtures should be installed.
Ceiling height: As mounting height increases, light has a greater distance to travel before reaching the floor. Higher ceilings may require higher-output fixtures and carefully planned spacing.
Lumen output: Lumens measure the amount of light produced by a fixture. A higher-lumen fixture may cover a larger area, but fixture output should always be considered alongside mounting height and beam distribution.
Beam angle: Beam angle determines how widely light spreads. A narrow beam may concentrate illumination in a smaller area, while a wider beam can provide broader coverage.
Warehouse layout: Storage racks, aisles, equipment, workstations, and machinery can all affect fixture placement. A layout designed for open floor space may require a different lighting arrangement than a warehouse with tall storage racks.
How Far Apart Should LED High Bay Lights Be?
A common mistake is to choose a spacing distance based only on a fixture's wattage. Wattage tells you how much electrical power a fixture uses, but it does not determine how much usable light reaches the work surface.
Instead, high bay spacing should be planned using the fixture's lumen output, mounting height, beam angle, and required illumination level.
For example, a high-output fixture mounted at a greater height may illuminate a larger area than a lower-output fixture. However, increasing the distance between fixtures too much can result in dark areas or inconsistent illumination.
For this reason, lighting layouts should be evaluated based on the actual dimensions and requirements of the facility rather than relying on a universal spacing recommendation.
High Bay Lighting Spacing for Warehouses
Warehouse lighting requires careful consideration because aisles and storage racks can affect how light reaches the floor.
For open storage areas, fixtures may be arranged in a consistent grid to provide relatively even coverage. In facilities with tall racks, fixtures may need to be positioned strategically over or between aisles to improve visibility and minimize shadows.
Areas used for picking, packing, inspection, and other detailed tasks may also require more consistent illumination than general storage areas.
If you are planning a warehouse lighting upgrade, our guide on how to choose the right LED high bay light for a warehouse covers ceiling height, lumen output, beam angle, energy efficiency, durability, and other important considerations.
How to Plan an LED High Bay Lighting Layout
A practical lighting layout starts with accurate measurements.
First, determine the floor dimensions and ceiling height. Then identify aisles, storage racks, workstations, equipment, loading areas, and other important zones.
Next, review the specifications of the high bay fixture you plan to use. Pay particular attention to lumens, beam angle, wattage, and mounting requirements.
Fixture placement should provide sufficient overlap between light patterns without creating excessive bright spots. For larger or more complex facilities, a professional photometric analysis can help determine fixture locations and expected illumination levels before installation.
The fixture style can also influence the layout. UFO High Bay Lights are commonly used in open industrial and commercial spaces, while linear high bays can be useful for long aisles and layouts where elongated light distribution is preferred.
Common LED High Bay Spacing Mistakes
Several mistakes can reduce the performance of a warehouse lighting system:
- Installing fixtures based only on wattage
- Ignoring ceiling height
- Choosing the wrong beam angle
- Placing fixtures too far apart
- Overlooking shadows created by storage racks
- Using the same layout for different areas of a facility
- Failing to consider task-specific lighting requirements
Avoiding these issues can help create more consistent illumination while reducing unnecessary fixture installations.
Does Fixture Spacing Affect Energy Efficiency?
Yes. Fixture spacing can influence the overall energy consumption of a lighting system.
Installing too many fixtures may increase electricity use and upfront installation costs. However, spacing fixtures too far apart may result in inadequate illumination, requiring additional fixtures or higher-output products later.
The goal is to achieve the required illumination with an efficient combination of fixture output, spacing, mounting height, and lighting controls.
For additional flexibility, some high bay fixtures offer selectable wattage or dimming capabilities. AHA Lighting's UFO High Bay Light with Emergency Battery Backup, for example, offers selectable 150W, 200W, and 240W wattage and tunable color temperature options.
Choose the Right Spacing for Your Facility
The right LED high bay lighting spacing depends on more than the distance between fixtures. Ceiling height, lumens, beam angle, warehouse layout, required illumination, and the type of work being performed all need to be considered together.
Rather than applying a standard spacing rule to every facility, evaluate the specific requirements of your space and lighting system. Proper planning can help reduce dark spots, improve visibility, and avoid unnecessary fixtures.
If you're upgrading a warehouse or industrial facility, explore AHA Lighting's warehouse lighting solutions to find high bay options suited to different commercial applications.
