Loading Dock Light Fixtures That Improve Safety

A loading dock can change from a bright exterior work zone to a dark trailer interior in seconds. The right loading dock light fixtures help workers see dock edges, trailer floors, pallets, lift gates, and moving equipment clearly through every shift. They also reduce maintenance demands in an area exposed to vibration, weather, vehicle traffic, and frequent on-off cycles.

For facility managers and contractors, the best choice is rarely one fixture for every location. A complete dock lighting plan usually combines exterior illumination, protected lights near doors and canopies, and focused light inside trailers or at the dock threshold. The goal is practical: give workers useful visibility without glare, wasted energy, or fixtures that become difficult to service.

How to Choose Loading Dock Light Fixtures

Start by separating the dock into work zones. The exterior apron needs broad, even coverage so drivers can back in safely and employees can move between trailers. The dock face and overhead canopy need light at doors, levelers, signage, and pedestrian paths. Trailer interiors need concentrated illumination that reaches the full working area, not just the first few feet past the door.

This approach prevents a common mistake: installing a high-output exterior fixture and assuming it will light the inside of a trailer. It will not. A trailer acts like a long, enclosed tunnel. Dock-mounted arms, task lights, or properly positioned interior-rated fixtures are often necessary to eliminate the deep shadows that create trip, forklift, and loading hazards.

Match the fixture type to the work area

Wall packs are a practical choice for dock approaches, building-mounted loading areas, and perimeter visibility. A full-cutoff wall pack can direct light downward and reduce spill toward neighboring properties, while selectable wattage and color temperature simplify retrofit decisions.

Canopy lights work well under loading overhangs and covered dock lanes. Their wide distribution helps create more even light directly below the fixture, which is useful at door positions, staging areas, and pedestrian transitions.

For enclosed or damp locations, vapor-tight fixtures may be the better fit. They are commonly used in service corridors, washdown-adjacent areas, cooler loading zones, and other spaces where dust, moisture, or temperature changes would shorten the life of an open fixture.

High-bay fixtures can support larger interior loading areas with tall ceilings, but they should be planned around rack layouts, forklifts, and dock doors. High mounting heights require enough output and the correct optical distribution to put useful light on the floor without producing harsh glare at eye level.

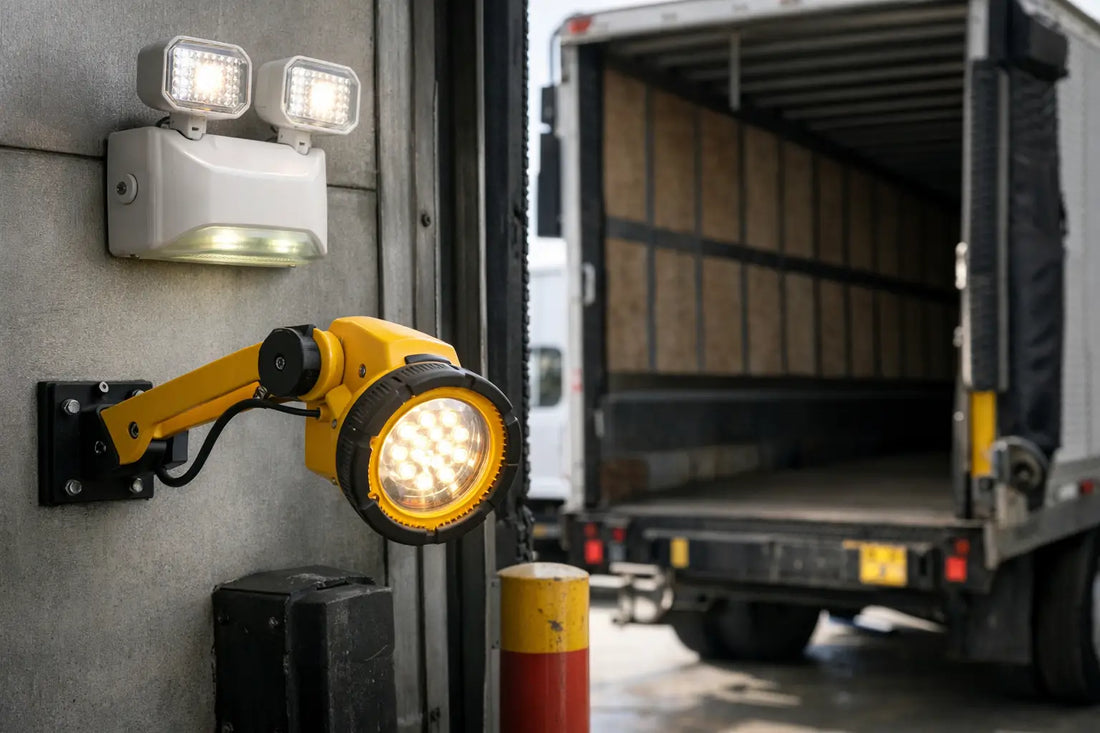

Trailer loading has its own requirements. Dedicated dock lights with adjustable arms are often the most functional option because workers can direct light into the trailer as conditions change. The mounting location must avoid impact from trailer movement, forklifts, and door hardware.

Prioritize Visibility, Not Just Fixture Wattage

Wattage tells you how much power a fixture uses. It does not tell you whether the dock will be safely illuminated. LED loading dock lighting should be evaluated by lumen output, light distribution, mounting height, beam control, and the surfaces that need to be seen.

A high-lumen fixture mounted too far from the work plane can leave dock levelers and trailer floors underlit. Conversely, an overly powerful fixture at a low mounting height may create glare on wet pavement, truck mirrors, reflective shrink wrap, and forklift windshields. The best installation produces consistent illumination with fewer extreme bright and dark areas.

Color temperature also affects how the space feels and performs. Many commercial docks use 4000K or 5000K LED fixtures because the cooler white light supports visual clarity and task recognition. A 4000K option can feel more balanced for mixed-use indoor areas, while 5000K is often selected for active industrial work zones and exterior loading areas. The right choice depends on existing lighting, surrounding conditions, and the preferences of the people who work there daily.

Color rendering matters when employees need to read labels, identify packaging colors, inspect damage, or distinguish safety markings. A higher CRI can improve those tasks, although it may not be the first specification to prioritize for a basic exterior dock apron. Consider the actual work being performed rather than selecting a specification simply because it is available.

Build for Weather, Impact, and Daily Use

Loading docks are hard on equipment. Fixtures may be exposed to rain, snow, humidity, dust, exhaust residue, vibration, and accidental contact with carts or machinery. Select housings, lenses, mounting hardware, and ingress protection ratings that match the environment.

An exterior dock fixture should be rated for wet locations. Covered areas may still experience wind-driven rain and condensation, so a damp-location rating alone may not be sufficient. In industrial indoor spaces, look for durable construction and lens materials suited to the chance of impact. Where fixtures are installed in a high-abuse area, placement and protective guards can be just as important as the fixture housing.

Corrosion is another consideration, especially near coastal properties, food-processing operations, or locations that use frequent washdowns. Aluminum housings, corrosion-resistant finishes, sealed drivers, and suitable gaskets can help extend service life. However, no rating removes the need for periodic inspection. Dirt buildup on lenses can reduce output well before the LED source reaches the end of its rated life.

Plan Emergency Lighting at the Dock

A power interruption during loading activity creates more than an inconvenience. It can leave employees near dock edges, inside trailers, or in travel paths with limited visibility. Emergency planning should address the actual egress route and the tasks that must stop safely when normal power fails.

Emergency-capable LED fixtures with a 90-minute battery backup can provide useful illumination during an outage when they are correctly specified and installed. They can be especially valuable in interior loading areas, covered dock paths, corridors leading to exits, and other locations where a separate emergency fixture would add installation complexity.

That does not mean every dock light needs an emergency driver. Emergency lighting design depends on local code requirements, occupancy, the building's egress layout, fixture placement, and the authority having jurisdiction. Battery backup must also be compatible with the selected fixture and installed so the charging circuit remains energized as required. A qualified electrician should verify the emergency circuit, testing method, and commissioning requirements before the project is closed out.

For dependable results, choose UL-certified products where applicable and confirm that the complete combination of fixture, emergency driver, controls, and mounting method is listed for the intended use. A fixture that performs well during normal operation is only part of the safety plan.

Use Controls Without Creating Safety Gaps

Occupancy sensors, photocells, and scheduling controls can lower energy use at docks that are active only during defined hours. They should be configured carefully. A sensor that turns lights off too quickly can create a poor working environment for employees moving inside a trailer or staging materials outside its detection area.

A better strategy is to use dimming or bi-level control where the application supports it. The area can remain at a lower standby level when unoccupied and rise to full output when activity is detected. For exterior fixtures, photocells can prevent daytime operation, while time schedules may align lighting with shipping and receiving hours.

Controls and emergency operation must be coordinated. Emergency fixtures generally need to provide required output when normal power is lost, regardless of whether a sensor has dimmed the normal lighting level. Confirm compatibility before purchasing, particularly when adding smart controls or aftermarket sensors to an emergency-ready fixture.

Installation Details That Prevent Callbacks

The most efficient fixture can still underperform if installation details are overlooked. Before ordering, verify voltage, mounting surface, junction box condition, available clearance, and the direction each fixture will face. Confirm whether the project needs surface mounting, pendant mounting, conduit entry, adjustable brackets, or replacement hardware.

For retrofits, document the existing fixture locations and mounting heights before selecting replacements. Reusing the same layout can save labor, but it may preserve the original coverage problems. Moving one or two fixtures, changing the distribution pattern, or using selectable wattage can produce a more effective result than simply matching the old fixture's wattage.

Commission the installation after dark or under realistic operating conditions. Walk the dock, step into a trailer, check the transition from bright exterior light to interior light, and look for glare at common viewing angles. Test emergency operation and controls before turnover. These checks are where lighting plans become dependable working systems.

AHA Lighting can help buyers narrow the selection by application, output, mounting method, and emergency backup needs. If the dock handles changing shift schedules, multiple trailer types, or specialized cargo, speak to a Lighting Expert before finalizing the fixture schedule. The right lighting decision gives the crew clearer working conditions long after the installation is complete.
