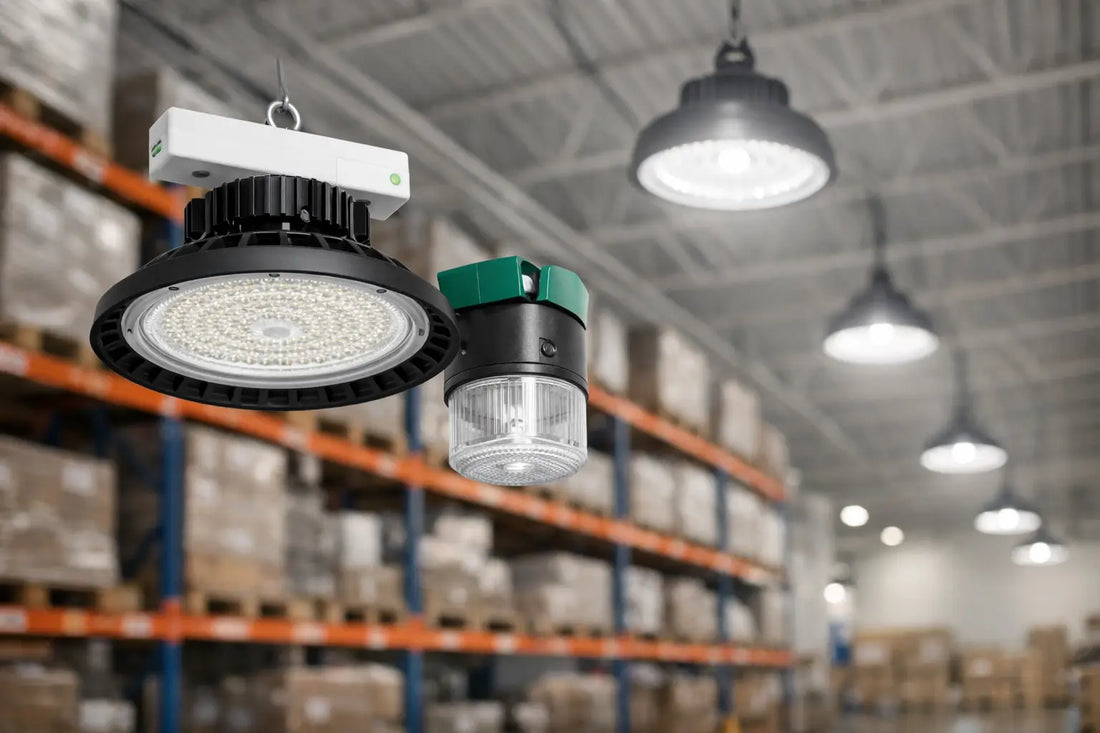

Warehouse High Bay Spacing Guide

A warehouse can have the right fixture on paper and still deliver poor light on the floor. In most cases, the problem is not the LED high bay itself. It is layout. A solid warehouse high bay spacing guide helps you avoid dark aisles, hot spots, wasted wattage, and mounting plans that look efficient until forklifts start moving and pick accuracy drops.

High bay spacing is not just a question of how far apart fixtures can physically fit. It affects foot-candles at task level, vertical visibility on racks, energy use, maintenance planning, and emergency egress performance. If you are lighting a new warehouse or correcting an uneven retrofit, spacing should be treated as a design decision, not a final installation detail.

What a warehouse high bay spacing guide should solve

The goal is straightforward: deliver consistent, usable light where work happens. In a warehouse, that usually means open floor zones, rack aisles, loading areas, staging space, and paths of egress. Good spacing supports visibility across each of those areas without overlighting one zone and underlighting another.

That sounds simple, but warehouse conditions complicate it fast. Mounting heights vary. Some facilities have narrow aisles with tall racks, while others have wide-open storage with lower ceilings. A fixture that performs well at 20 feet may not produce the same spacing results at 30 feet. Beam angle, lumen package, reflectivity, and aisle orientation all change the outcome.

This is why there is no single spacing number that works for every building. Anyone promising that every 240W or every 150W high bay should sit a fixed number of feet apart is oversimplifying the job.

Start with mounting height, not fixture wattage

One of the most common mistakes in warehouse lighting is using wattage as the main planning metric. Wattage tells you power draw, not where light lands. For spacing, mounting height is the better starting point because it directly affects coverage and intensity at floor level.

As a practical rule, higher mounting heights allow wider spacing, but only if the fixture is built to project light effectively from that elevation. A high-output UFO high bay with the right optic can be spaced farther apart than a lower-output linear fixture at the same height. At the same time, pushing spacing too far usually creates weak spots between fixtures, especially in aisles or near rack faces.

A common planning approach is to use spacing-to-mounting-height ratio as an early checkpoint. For many warehouse high bay applications, spacing often lands somewhere around 1.0 to 1.5 times the mounting height, depending on beam distribution and target light levels. That is a starting range, not a final answer. A 25-foot mounting height might support spacing in the 25 to 37-foot range in some open areas, but not necessarily in narrow aisles or task-heavy zones.

Open floor layouts and aisle layouts need different spacing logic

Open warehouse space usually allows more forgiving fixture placement. If the floor is used for pallet staging, bulk storage, or general movement, the main objective is broad, even illumination with controlled glare. In these areas, spacing can often be wider because there are fewer vertical obstructions interrupting light distribution.

Rack aisles are different. Tall shelving blocks lateral light and creates shadows that make labels, product locations, and obstacles harder to see. In aisle applications, spacing often needs to align with aisle centerlines and rack geometry rather than a clean grid across the whole ceiling. That can mean tighter spacing, different optics, or a linear high bay layout that throws light down the aisle instead of across it.

This is also where vertical foot-candle performance matters. Warehouse staff do not only need to see the floor. They need to read cartons, rack labels, and product positions several levels up. A layout that looks acceptable from a floor-only perspective may still underperform during actual picking and stocking.

Beam angle changes the spacing result

A wider beam angle spreads light across a broader area, which can support larger spacing in open spaces. The trade-off is lower intensity at distance and more spill into areas where light may not be useful. In high-ceiling applications, a beam that is too wide can leave the floor dimmer than expected.

A narrower beam angle concentrates light more tightly. That helps in very tall spaces or focused aisle applications, but it can also create bright centers and darker gaps if fixtures are spaced too far apart. In other words, narrow optics can improve punch, but they usually demand more disciplined placement.

This is why spacing cannot be separated from distribution. Two fixtures with similar lumens may need completely different layouts based on optics alone.

Reflective surfaces and stored materials affect real-world spacing

Lighting plans often look cleaner than actual warehouses. White ceilings and light-colored floors can help bounce light and improve perceived brightness. Dark decking, exposed structure, shrink wrap, and dense racking absorb more light and reduce the benefit of wider spacing.

Stored inventory also changes over time. A warehouse with low pallets today may transition to taller storage next quarter. If your layout only works under current conditions, it may not hold up operationally. A little spacing conservatism can prevent costly revisions later.

The same applies to lens dirt, dust, and maintenance intervals. If the environment is dirty or the fixtures are not cleaned often, illumination levels will degrade. Spacing that is already aggressive on day one may become a problem much sooner than expected.

Target light levels should guide the final layout

A practical warehouse high bay spacing guide always comes back to required light levels. General storage areas may need moderate foot-candle levels, while active picking zones, packing stations, and inspection areas usually need more. Egress paths and code-related emergency illumination introduce another layer of planning.

If the facility includes emergency-capable high bays or compatible emergency backup solutions, the normal layout should still support safe performance when utility power is lost. Emergency operation is not intended to maintain full production lighting, but spacing decisions should not leave critical paths, intersections, or exit routes poorly served during backup mode.

For that reason, code compliance and everyday usability should be considered together. A bright warehouse during normal operation is only part of the job.

Common spacing mistakes that create expensive fixes

The first mistake is over-spacing fixtures to cut quantity. This lowers upfront fixture count, but it often creates uneven light, forces later add-ons, and can make a supposedly efficient upgrade more expensive over the full project.

The second is using a perfectly symmetrical grid in a building that does not function symmetrically. Docks, aisles, workstations, and storage rows rarely benefit from generic fixture placement. Layout should follow use patterns.

The third is ignoring mounting obstructions. Trusses, ductwork, fire sprinklers, and conduit paths can interfere with ideal placement. If these issues are not considered early, installers end up shifting fixtures on site and breaking the lighting plan.

The fourth is treating photometric recommendations as optional. Visual guesswork is risky in high-bay spaces because small layout changes at the ceiling can mean major differences on the floor.

How to get spacing right before purchase

Start with the basics: ceiling height, mounting height, aisle width, rack height, surface reflectance, and the tasks performed in each zone. Then match the fixture type to the application. UFO high bays are often a good fit for open areas and higher ceilings, while linear high bays may work better where elongated light patterns support aisle-based layouts.

After that, use a lighting plan. This is the step that separates informed buying from trial and error. A proper layout should show fixture locations, expected foot-candle levels, and uniformity across the space. It should also account for actual building dimensions rather than idealized assumptions.

For many buyers, this is where expert support saves time. AHA Lighting works with commercial buyers who need code-compliant, easy-to-install LED fixtures and practical guidance on selecting the right high bay configuration for the space, including emergency-ready options when required.

When tighter spacing is the better business decision

Not every warehouse should be lit to the minimum acceptable threshold. If the facility runs multiple shifts, relies on barcode scanning, handles small-part picking, or prioritizes safety in high-traffic forklift lanes, tighter spacing may be justified. The result is usually better uniformity, lower visual fatigue, and fewer complaints from crews working under the system every day.

Yes, tighter spacing can increase fixture count. But it may also let you choose lower wattages per fixture, reduce dark-zone liability, and support better long-term performance. The cheapest layout on a fixture schedule is not always the most cost-effective system in operation.

The best spacing guide is the one built around your warehouse

There are useful rules of thumb in any warehouse high bay spacing guide, but they only get you so far. Real spacing depends on your ceiling, your racks, your tasks, your light level targets, and whether you need backup power support for emergency operation.

If you want a warehouse lighting upgrade to perform like a real improvement, treat spacing as part of fixture selection from the start. The right layout is what turns an LED high bay from a product spec into dependable visibility on the floor.
