AHA LIGHTING LED

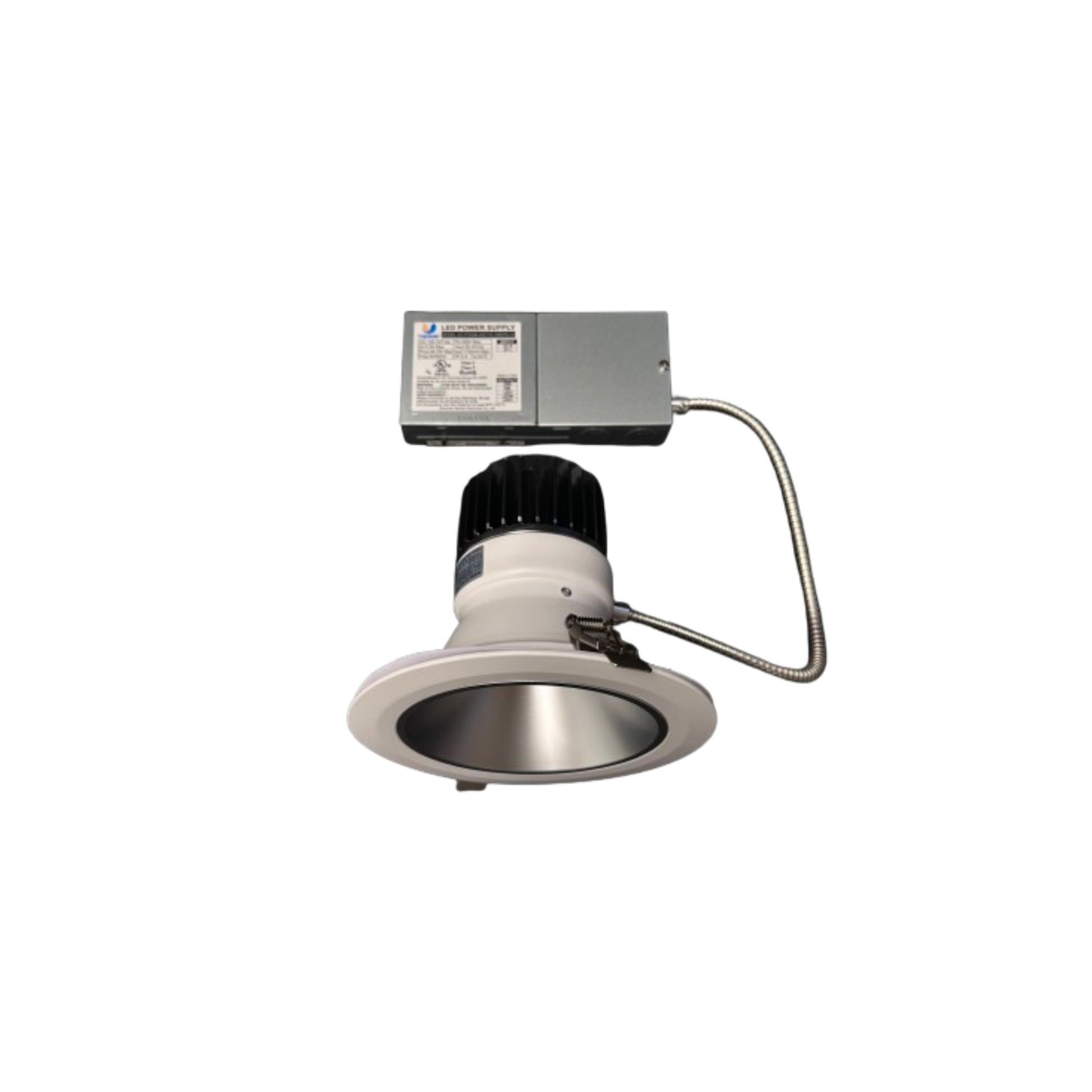

6" Architectural Downlight Up To 4,000LM CCT Tunable 3000/4000/5000K 0-10V Dimming 100-277V J-box

6" Architectural Downlight Up To 4,000LM CCT Tunable 3000/4000/5000K 0-10V Dimming 100-277V J-box

Part Number: E2-DL-PCOM-6Inch
Specifications
Features
  • 4000LM High Lumen Delight Your Commercial Space
  • Aluminum Housing And Heat-sink
  • UL Listed Quality For Damp Location
$60.00 ea.
Free Shipping
Next Day Shipping
Have a Question?

Contact Us

Message Sent! ✅
View full details

Overview

Description

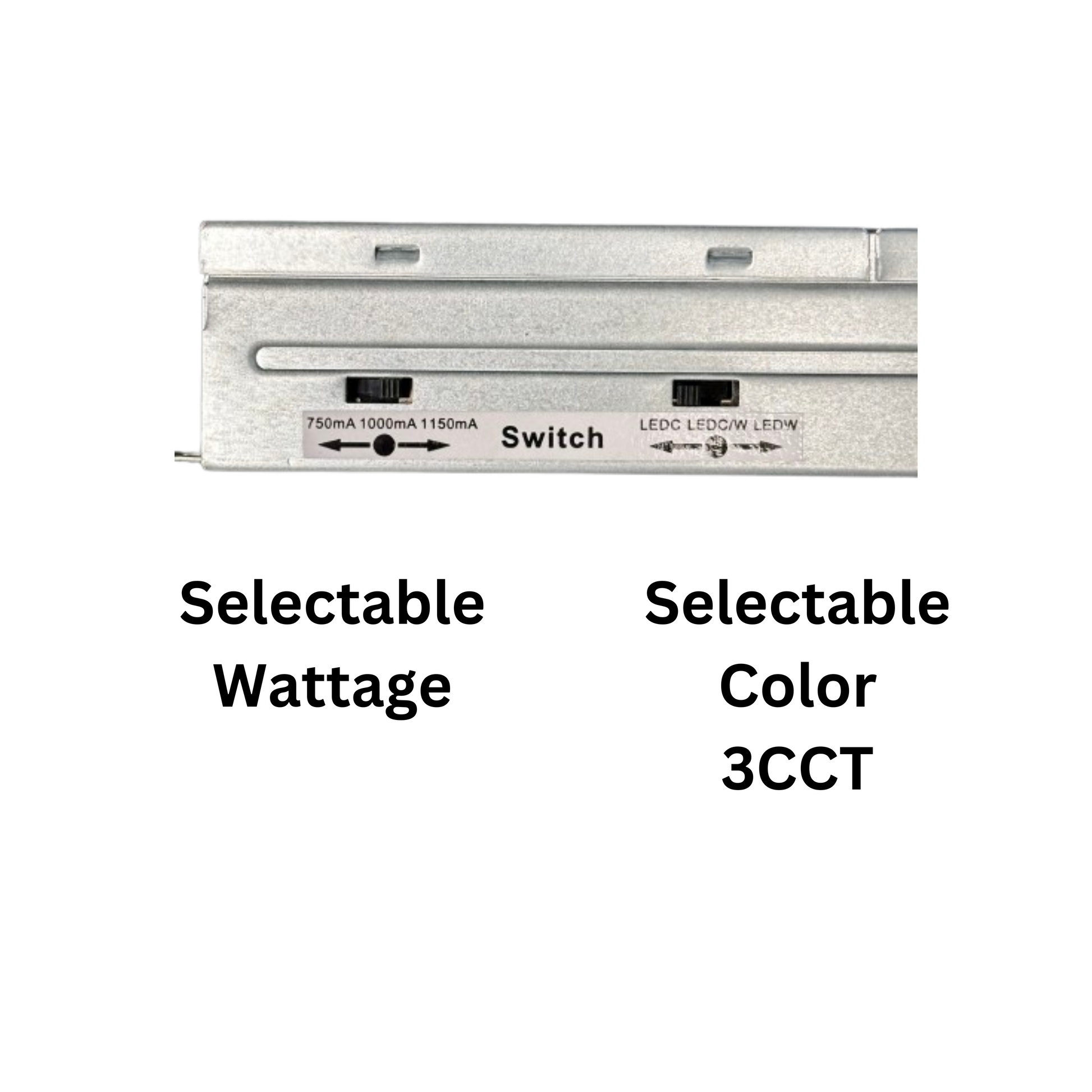

This versatile 6" downlight offers wattage tuning (20W/30W/40W) and adjustable color temps (3000K-5000K) for customized lighting, paired with 0-10V dimming for perfect ambiance control. The 100-277V wide voltage range and integrated J-box ensure easy installation in offices, hotels, retail spaces, and modern homes, while its sleek design blends seamlessly into any architecture.

  • UL Certified
  • cETLus Listed
  • Dimmable
  • 5 Years Warranty

Documents

PDF Icon Spec Sheet

PDF Icon IES File

PDF Icon Installation Guide

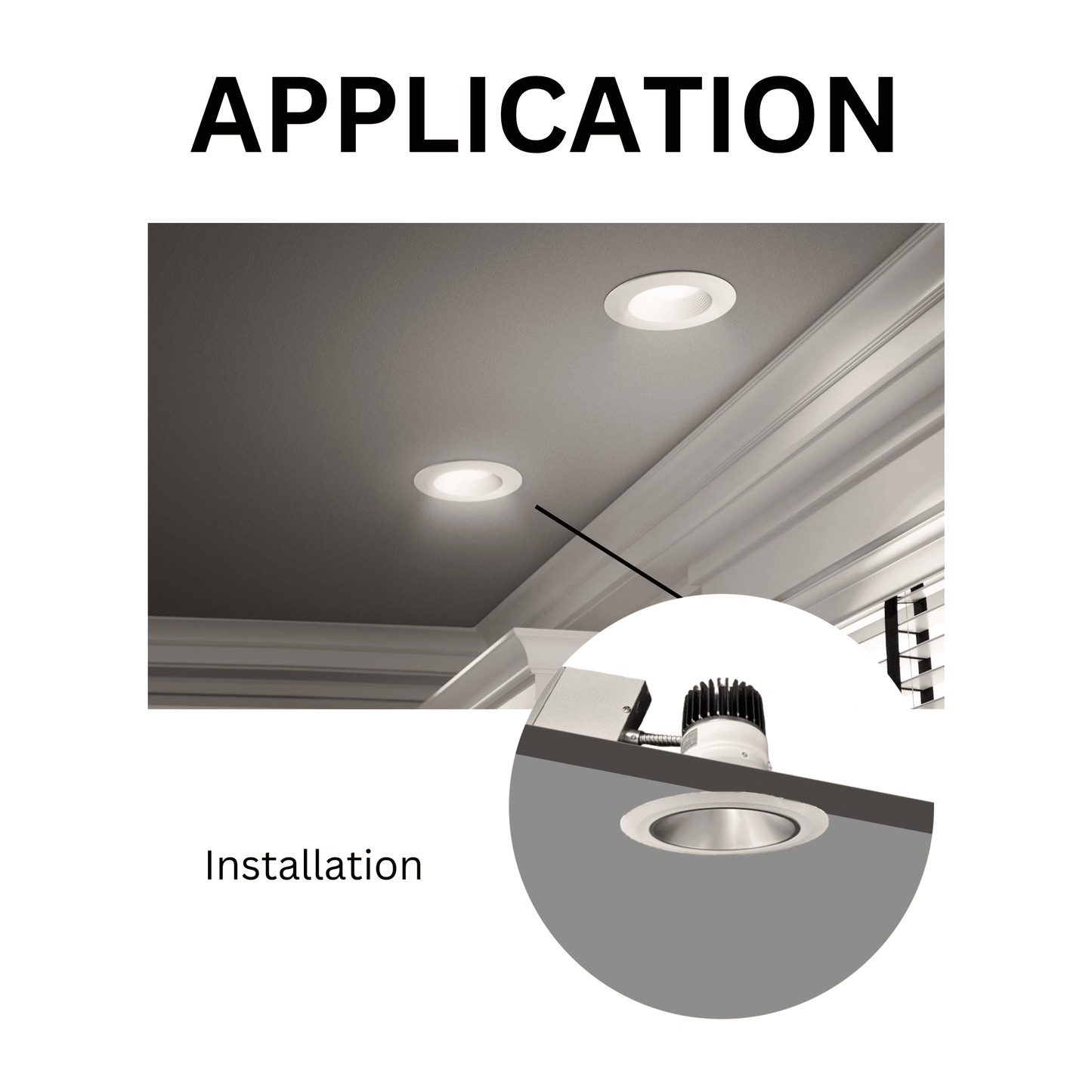

Applications

  • Shop Light
  • Indoor Fixture
  • Commercial Fixture

Specifications

WATTAGE
20W-30W-40W TUNABLE COLOR TEMPERATURE 3000K, 4000K, 5000K TUNABLE
LUMINOUS FLUX 2000 TO 4000 LUMENS LIFESPAN 50,000 HOURS
VOLTAGE 100V-277V CRI >90
DIMMABLE YES, 0-10V
