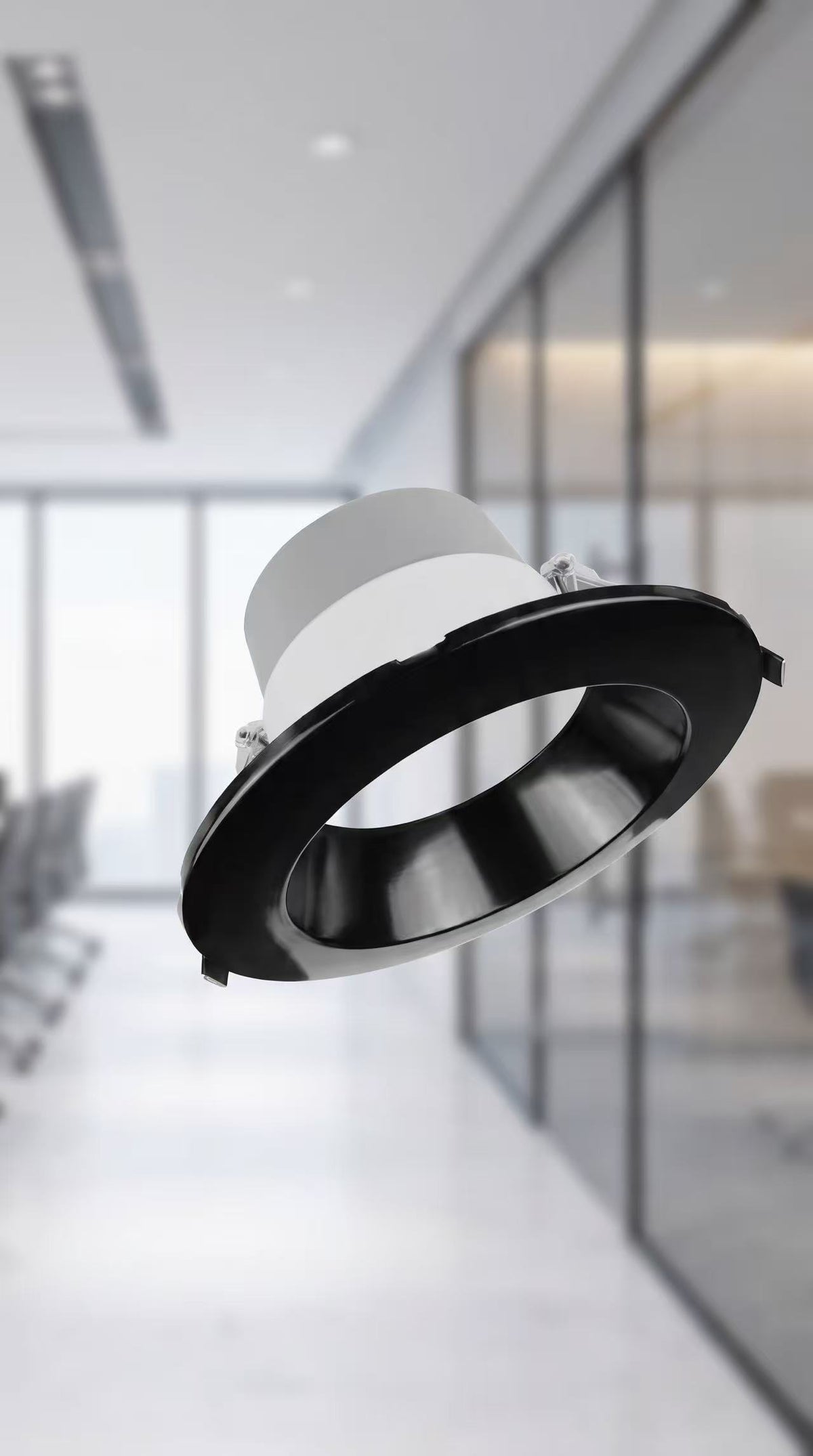

AHA LIGHTING 6" Black Trim Commercial LED Downlight | Up to 1,600 Lumens | 8W/12W/16W Wattage Tunable | 3 CCT Tunable | 120-277V
AHA LIGHTING 6" Black Trim Commercial LED Downlight | Up to 1,600 Lumens | 8W/12W/16W Wattage Tunable | 3 CCT Tunable | 120-277V
$50.00
ea.
Couldn't load pickup availability
Contact Us
Overview
Description

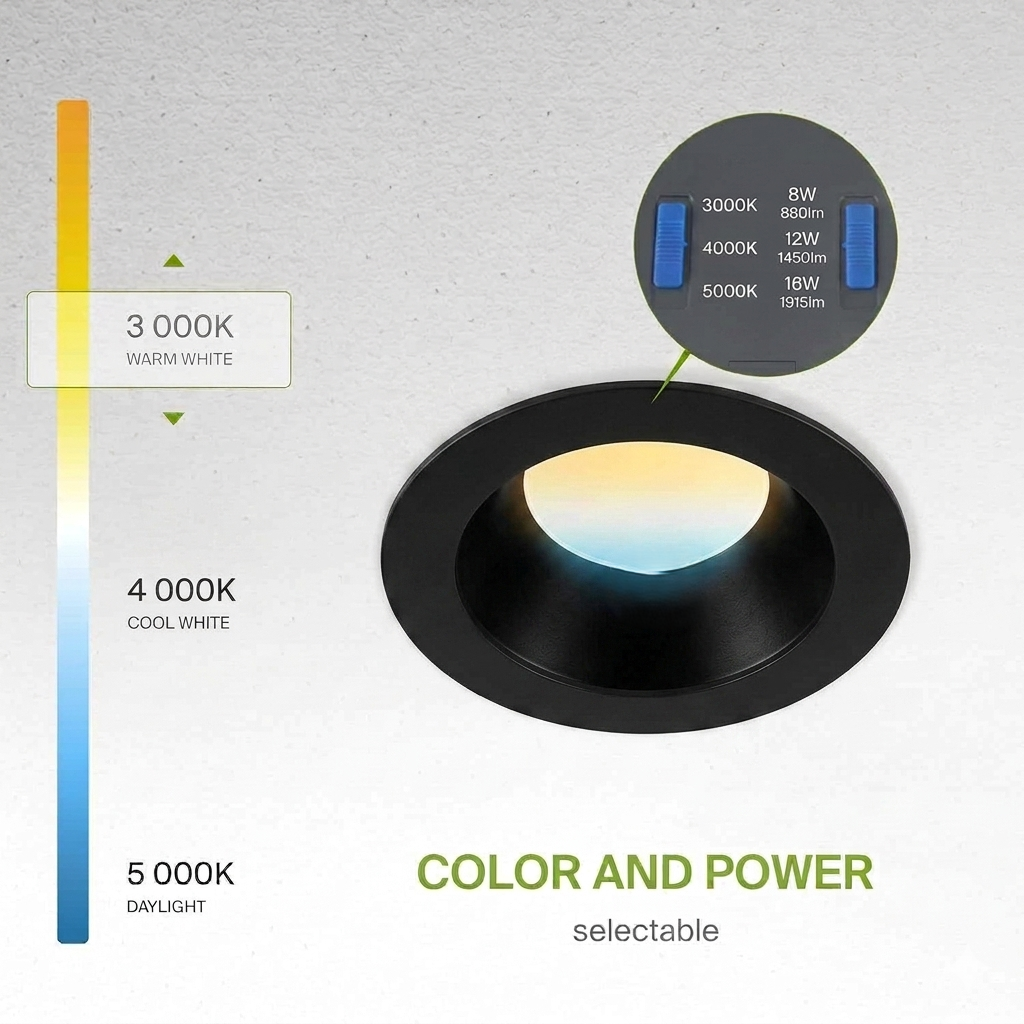

This 6-inch round LED downlight is ideal for commercial applications. Its wattage sets to 8W, 12W or 16W for 800, 1,200 or 1,600 lumens, and you can choose your preferred color temperature, 3000K, 4000K or 5000K, with a simple switch. CRI is 80+, with an 80° beam.
It dims with 0–10V controls, runs on 120–277V and recesses on spring bars into a 6.19–7.5 inch cutout. The IP54 fixture is rated for indoor use in lobbies, offices, meeting rooms, restrooms, hallways, hospitals, airports, hotels, restaurants and shopping centers.
cETLus and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Product Specs
| General | |
|---|---|
| Family | Downlight |
| Series | Commercial Downlight (COM, COM-E) |
| Size | 6 in |
| Light | |
|---|---|
| Beam Angle | 80° |
| CCT | 3000 / 4000 / 5000K |
| CRI | 80+ |
| Lumens | 800 lm (at 8W) / 1,200 lm (at 12W) / 1,600 lm (at 16W) |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 800 lm; 1,200 lm; 1,600 lm: 8 / 12 / 16W |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Cutout | 6.19–7.5 in |
| Diameter | 8.31 in |
| Height | 4.38 in |
| Mounting | Recessed / Spring bars |
| Weight | 1.12 lb (net) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V (continuous) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
Compliance
| Certifications | cETLus / ENERGY STAR |
| IP Rating | IP54 |
| Location Rating | Indoor |
| Standards | FCC / CE / RoHS / IEC 60529 |
