AHA LIGHTING LED

AHA LIGHTING 6" LED Slim Downlight with Emergency Battery Backup | 1000 Lumens | 12W | 5 CCT Tunable | Copper

AHA LIGHTING 6" LED Slim Downlight with Emergency Battery Backup | 1000 Lumens | 12W | 5 CCT Tunable | Copper

Part Number: E2-DL-SLIM-6Inch-16W-27/30/35/40/50K-E-C
Features
  • 12W, 1000LM
  • 2700K/3000K/3500K/4000K/5000K CCT Selectable
  • Built-in 4W Emergency Battery, 90+ Minutes
  • TRIAC Dimmable
  • 120-277 Volt
  • Indoor, IP54
View specifications
$159.00 ea.
Free Shipping
Next Day Shipping
Have a Question?

Contact Us

Message Sent! ✅
View full details

Overview

Description

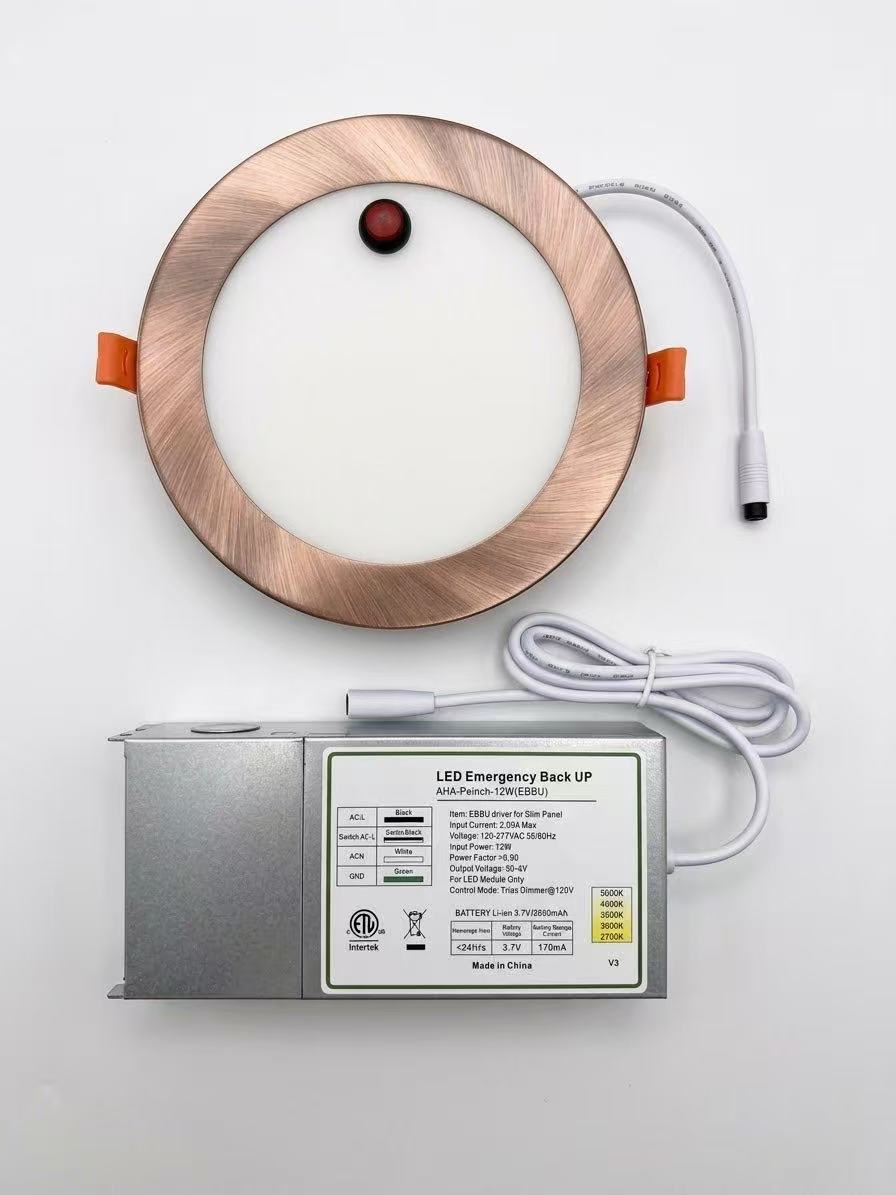

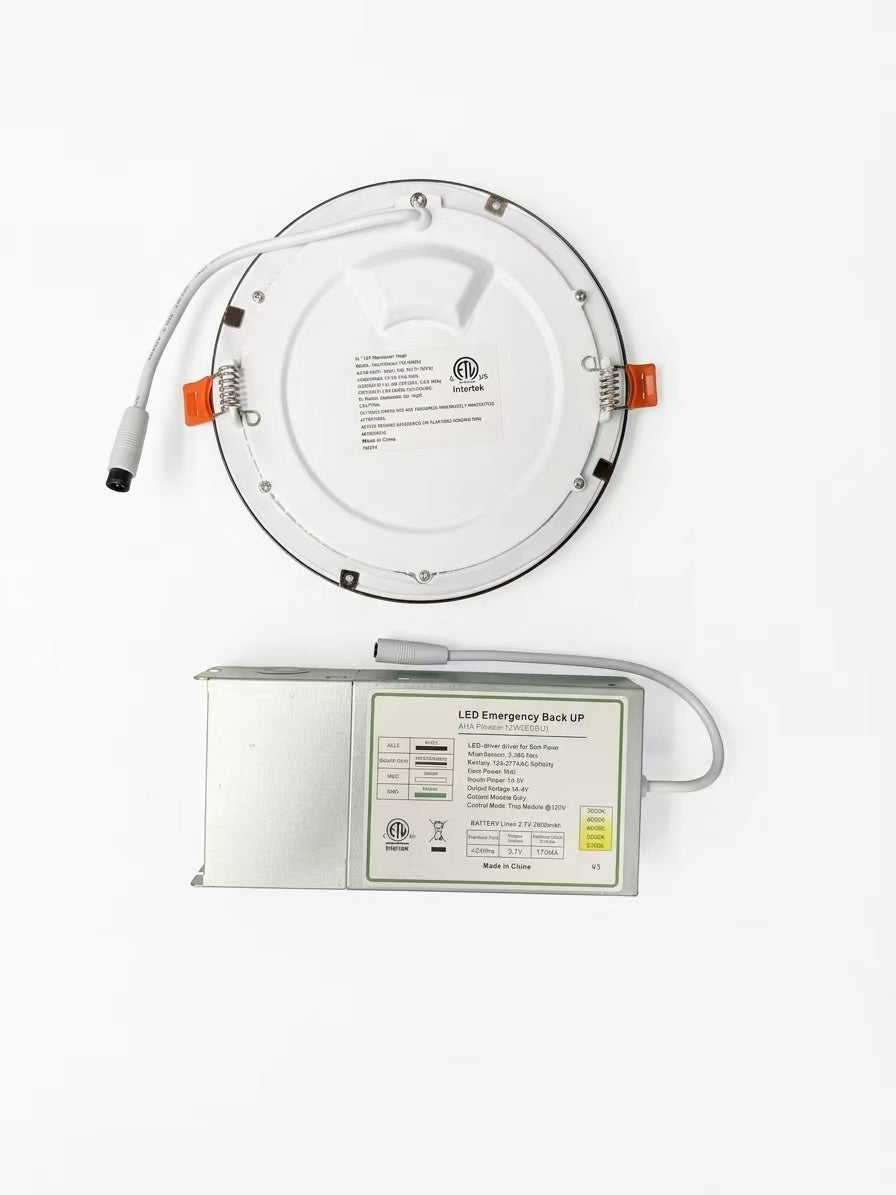

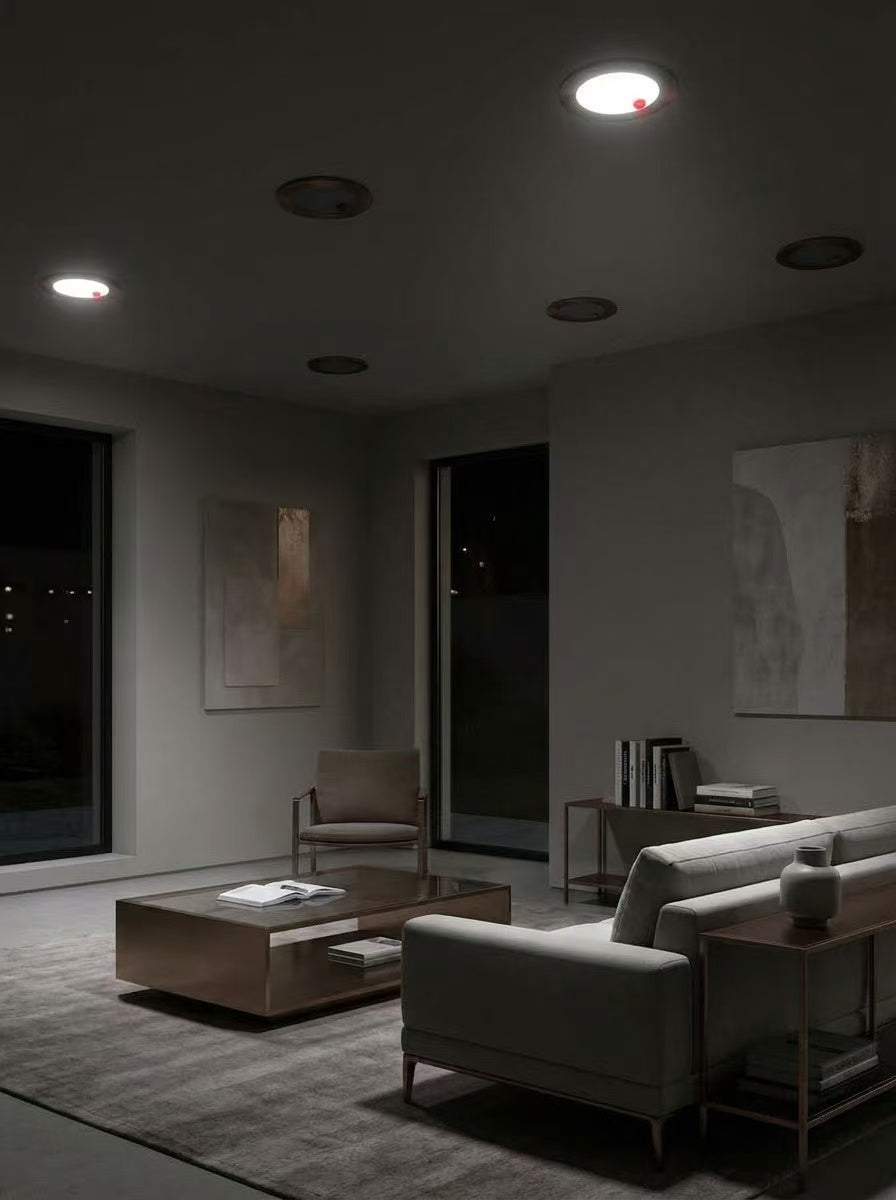

Bring adjustable light and outage backup to an indoor ceiling with this 6-inch copper LED slim downlight. Its pre-wired emergency battery needs no extra battery wiring and supplies 4W for 90+ minutes when the power fails, with a test button and LED indicator on the fixture.

It draws 16W, with five selectable color temperatures (2700K, 3000K, 3500K, 4000K or 5000K), CRI 90 and TRIAC dimming on 120–277V. The slim, IC-rated fixture has a 7.48-inch overall diameter, fits a 6.125-inch cut hole and holds with pressure-fit clips. It is IP54 rated for indoor residential and commercial ceilings and operates from -4 to 104 °F.

Rated for 50,000 hours, with a 5-year warranty.

  • Dimmable
  • 5 Years Warranty

Documents

Applications

  • Indoor Fixture
  • Commercial Fixture
  • Residential Fixture
  • Celling Fixture

Product Specs

General
FamilyDownlight
SeriesUltra Slim Downlight (SLIM, SLIM-E)
Size6 in
Light
CCT2700K / 3000K / 3500K / 4000K / 5000K
CRI90
Electrical
Frequency50 / 60 Hz
Power Factor0.9+
THDup to 20%
Voltage120–277V
Wattage16W
Physical
Ambient Temperature-4–104 °F / -20–40 °C (operating)

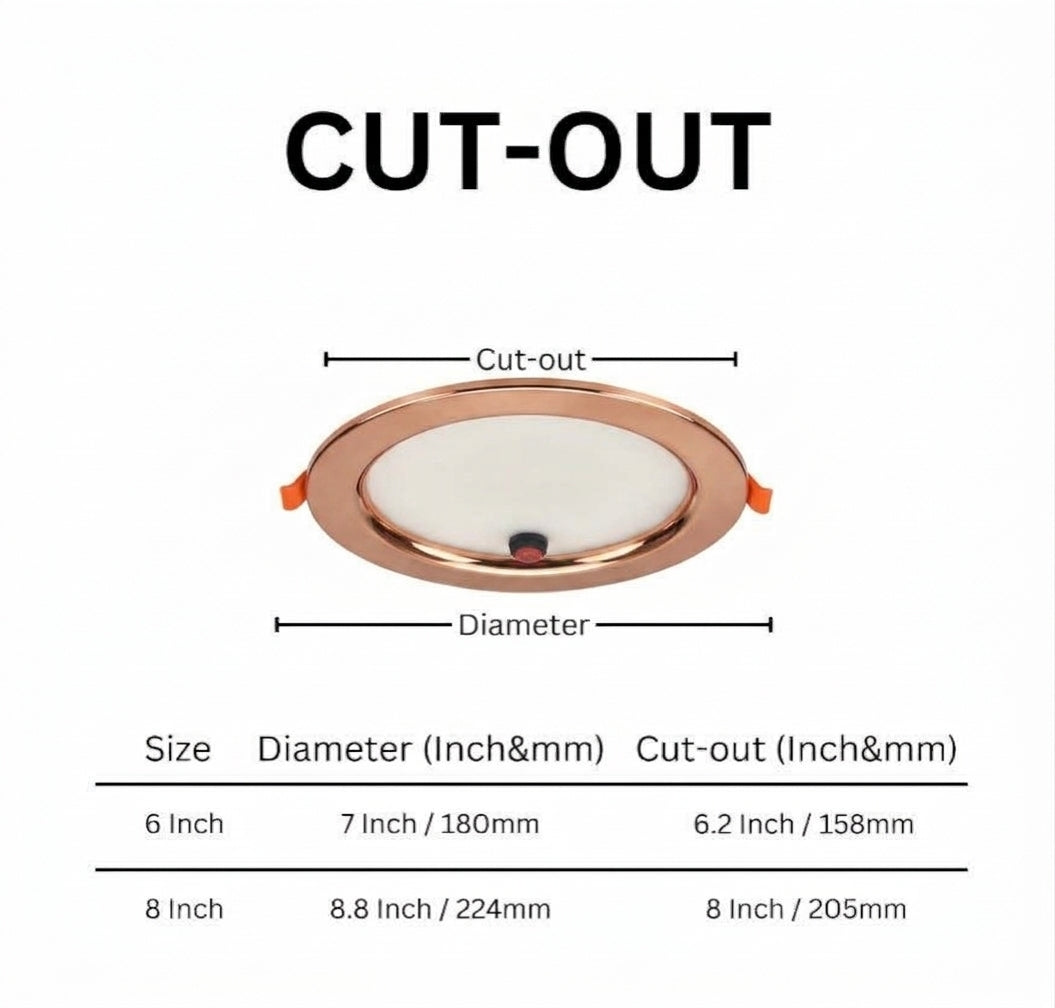

Cutout6.13 in
Diameter7.48 in
FinishCopper
MountingRecessed / Pressure-fit clips
Emergency
Emergency BackupIntegrated
Emergency Lumens480 lm (at 4W)
Emergency Power4W (emergency battery)
Emergency Runtime90+ minutes

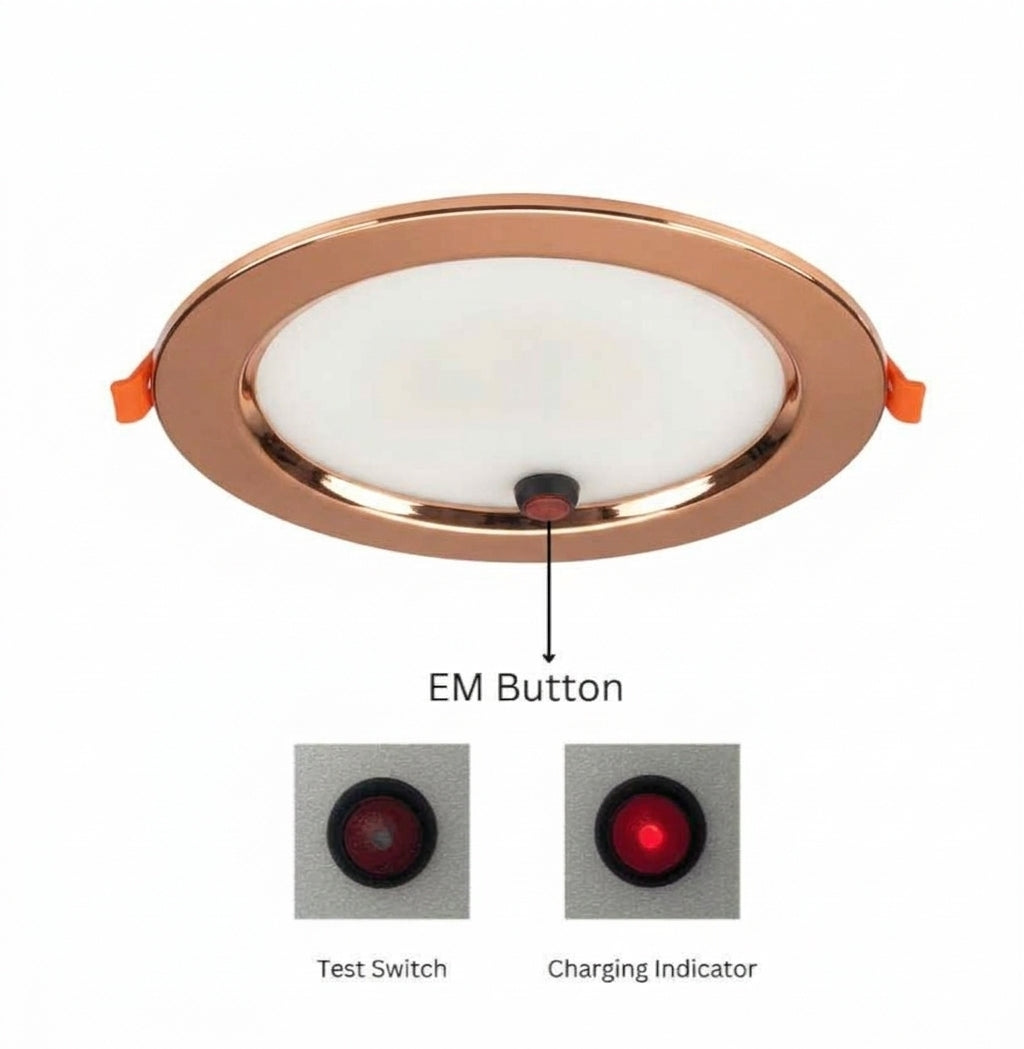

Indicator LightLED indicator
Test SwitchTest button (manual)
Controls
DimmableYes
Dimming TypeTRIAC
Warranty
Rated Life50,000 hours
Warranty5 years

Compliance

IC RatingYes
IP RatingIP54
Location RatingIndoor
