AHA LIGHTING 8" Black Trim Commercial LED Downlight | Up to 3,500 Lumens | 5 Wattage Tunable | 5 CCT Tunable | 120-277V
AHA LIGHTING 8" Black Trim Commercial LED Downlight | Up to 3,500 Lumens | 5 Wattage Tunable | 5 CCT Tunable | 120-277V
$55.00
ea.
Couldn't load pickup availability
Contact Us
Overview
Description
This 8-inch round LED downlight is ideal for commercial applications. Its wattage sets to 16W, 22W, 26W, 30W or 35W for 1,600, 2,200, 2,600, 3,000 or 3,500 lumens, and you can choose your preferred color temperature, 2700K, 3000K, 3500K, 4000K or 5000K, with a simple switch. CRI is 80+, with a 90° beam.
It dims with 0–10V controls, runs on 120–277V and recesses into the ceiling on spring bars. The IP54 fixture is rated for indoor use in lobbies, offices, meeting rooms, restrooms, hallways, hospitals, airports, hotels, restaurants and shopping centers.
cETLus and ENERGY STAR listed, with a 50,000-hour rated life and a 5-year warranty.
Product Specs
| General | |
|---|---|
| Family | Downlight |
| Series | Commercial Downlight (COM, COM-E) |

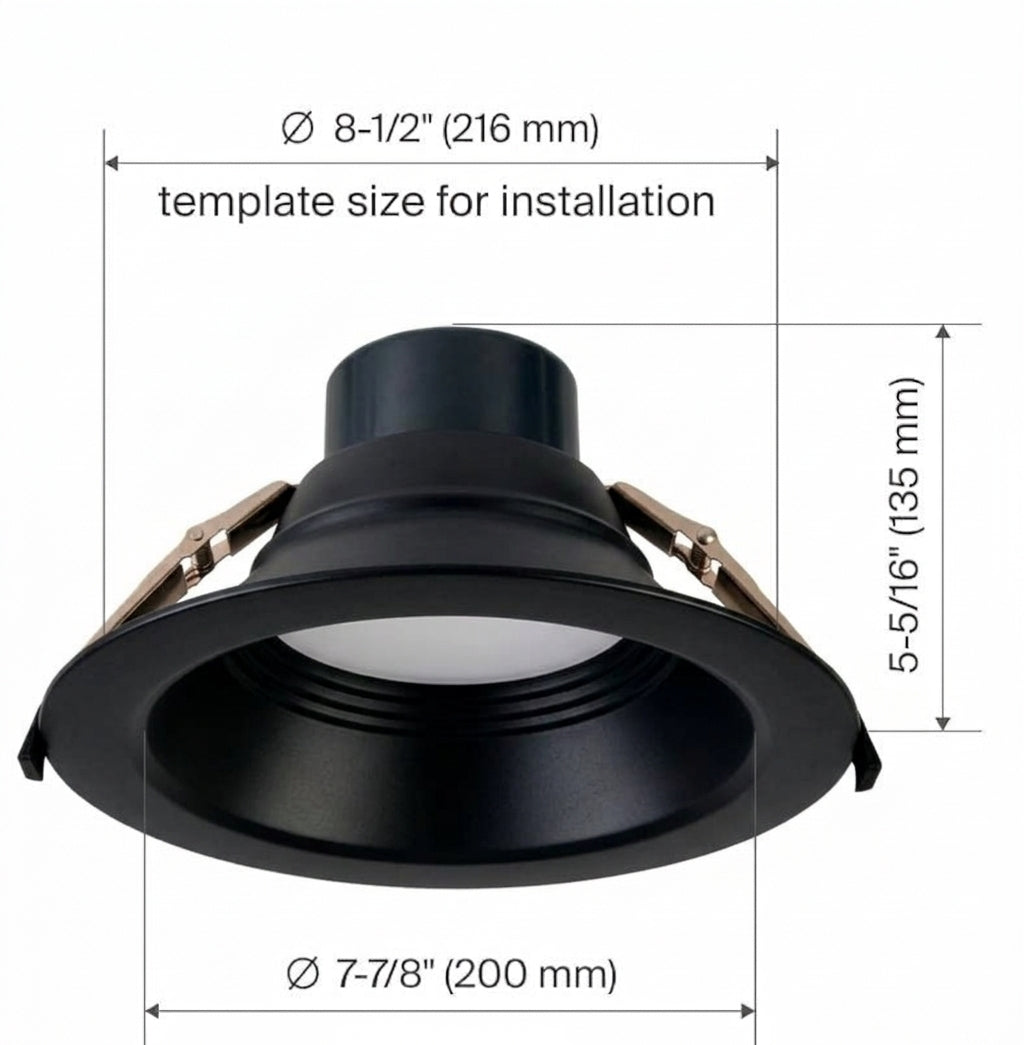

| Size | 8 in |
| Light | |
|---|---|
| Beam Angle | 90° |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000K |
| CRI | 80+ |
| Lumens | 1,600 / 2,200 / 2,600 / 3,000 / 3,500 lm |
| Electrical | |
|---|---|
| Frequency | 50 / 60 Hz |
| Power Factor | 0.9+ |
| THD | up to 20% |
| Voltage | 120–277V |
| Wattage | 16 / 22 / 26 / 30 / 35W |
| Physical | |
|---|---|
| Ambient Temperature | -4–104 °F (operating) |
| Mounting | Recessed / Spring bars |
| Weight | 1.34 lb (net) |
| Controls | |
|---|---|
| CCT Selectable | Yes, switchable |
| Dimmable | Yes |
| Dimming Type | 0–10V (continuous) |
| Wattage Selectable | Yes |
| Warranty | |
|---|---|
| Rated Life | 50,000 hours (at L70) |
| Warranty | 5 years |
Compliance
| Certifications | cETLus / ENERGY STAR |
| IP Rating | IP54 |
| Location Rating | Indoor |
| Standards | FCC / CE / RoHS / IEC 60529 |
