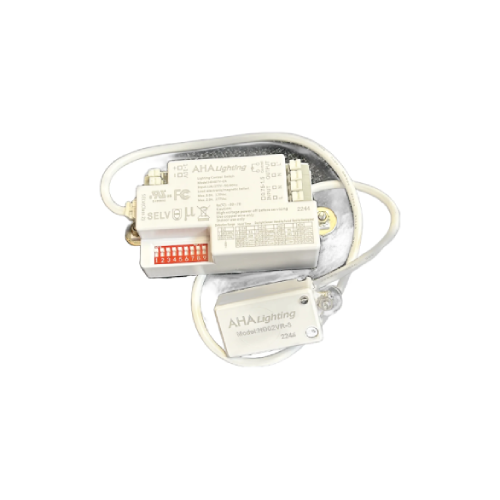

Bi-Level Microwave Sensor
Bi-Level Microwave Sensor
$35.00
Couldn't load pickup availability
Contact Us
Overview
Description
Save energy and optimize lighting with the Bi-Level Microwave Sensor 120-277V. Perfect for any indoor or outdoor commercial space, this self-contained sensor seamlessly integrates with lighting fixtures to provide bi-level lighting based on occupancy and daylight levels. Its line voltage relay design ensures reliable performance and easy installation.
Specifications
|
120-277VAC,50HZ/60HZ SWITCHING |
CAPACITY | MAX,3.0A@120VAC,50/60HZ; MAX,2.0A@277VAC,50/60HZ | |
| MICROWAVE FREQUENCY | .8GHZ±75MHZ | STAND-BY POWER | ≤1W |
| CONTROL METHOD | ON/OFF / 1-10V DIMMING | DETECTION ANGLE | 30-150° WITHOUT GLASS COVER |
| DETECTION RANGE | MAX.Ø14M/45.93FT | MOUNTING HEIGHT | 2.5-6M /8.2-19.68FT |
| DETECTION AREA | 50%/100% DIP OPTIONS | COVERAGE AREA | BETWEEN 500 sqft (30° ANGLE) AND 2,700 sqft (150° ANGLE) |
| HOLD TIME | 5S/30S/1MIN/10MIN DIP OPTIONS | DAYLIGHT THRESHOLD | 2LUX/10LUX/50LUX/DISABLE DIP OPTIONS |
| STAND-BY PERIOD | 0S/30S/20MIN/+ ∞ DIP OPTIONS | STAND-BY DIMMING LEVEL | 10%/20%/30%/50% |
| IP RATING | IP20 | OPERATING TEMPERATURE | -30°C~+70°C |
| WARRANTY | 5 YEARS |
